Description
Ceratizit Article Number: 6261121402
Ceratizit Material Number: 12549049
Ceratizit Komet Number (Unpacked): W59 18050.046440
Ceratizit Komet Number (Packed): W5918050046440
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

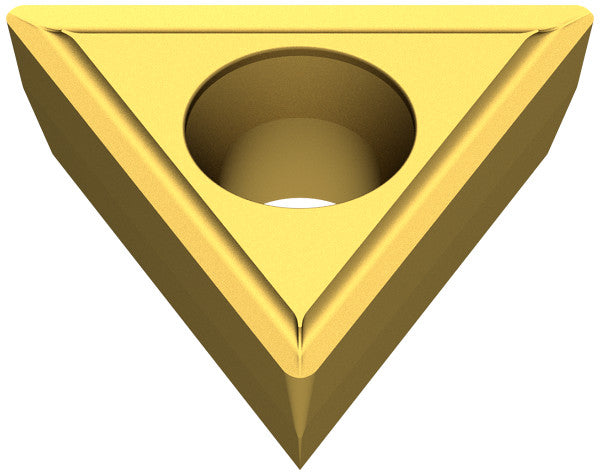

| Name | Ceratizit TOHT 110304EN-05 BK6440 CoreLine HM indexable Insert 6261121402 | |
| EDP # | 0757647 | |
| Weight (1 pc.) | 0.1 oz | 3.2 g |
| designation | 110304EN | |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.4094" | 10.400 mm |
| Insert thickness / S | 0.1252" | 3.180 mm |
| Fixing hole diameter / D1 | 0.1102" | 2.800 mm |
| Inscribed circle diameter / IC | 0.2500" | 6.350 mm |
| Size | 11.0000" | 279.400 mm |
| Designation | TOHT 110304EN | |
| Chip breaker (Ceratizit) / CBMD | -05 | |
| Coating name / Grade (Ceratizit) / COATN | BK6440 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
