Description
Ceratizit Article Number: 6261243002
Ceratizit Material Number: 12549092
Ceratizit Komet Number (Unpacked): W60 32120.0403
Ceratizit Komet Number (Packed): W60321200403
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

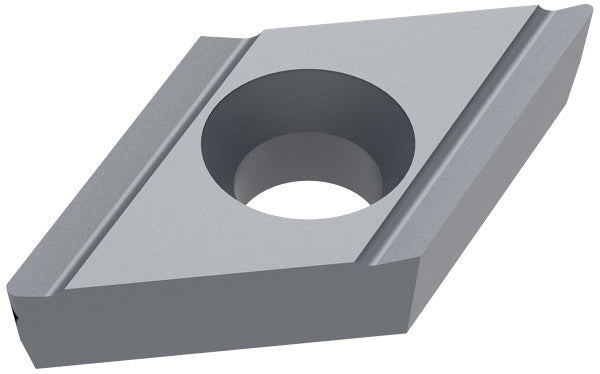

| Name | Ceratizit DOHT 11T304EL-G12 P25M CoreLine HM indexable Insert 6261243002 | |
| EDP # | 0757665 | |
| Weight (1 pc.) | 0.1 oz | 3.9 g |

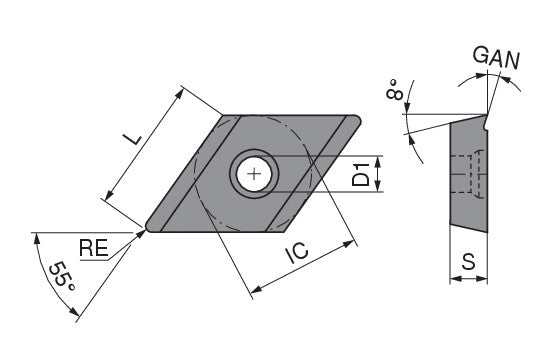

| designation | 11T304EL | |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.4409" | 11.200 mm |
| Insert thickness / S | 0.1575" | 4.000 mm |
| Fixing hole diameter / D1 | 0.1693" | 4.300 mm |
| Inscribed circle diameter / IC | 0.3748" | 9.520 mm |
| Size | 11.0000" | 279.400 mm |
| Designation | DOHT 11T304EL | |
| Chip breaker (Ceratizit) / CBMD | -G12 | |
| Coating name / Grade (Ceratizit) / COATN | P25M | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
