Description
Ceratizit Article Number: 6261213202
Ceratizit Material Number: 12549104
Ceratizit Komet Number (Unpacked): W60 32420.046425
Ceratizit Komet Number (Packed): W6032420046425
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

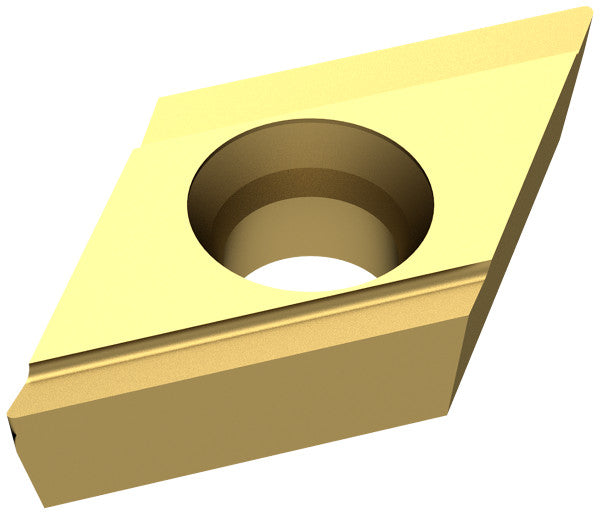

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

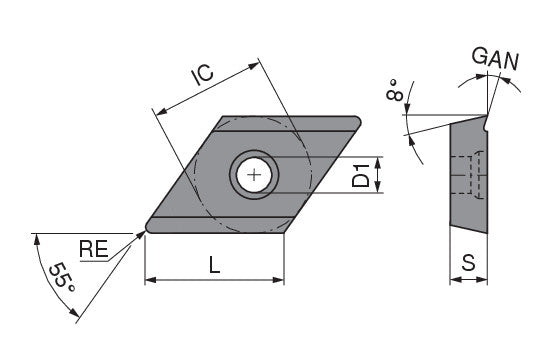

| Properties | ||
|---|---|---|
| Name | Ceratizit DOHT 11T304ER-G12 BK6425 6261213202 | |
| EDP # | 0757671 | |
| Weight (1 pc.) | 0.2 oz | 5.1 g |
| designation | 11T304ER | |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.4409" | 11.200 mm |
| Insert thickness / S | 0.1575" | 4.000 mm |
| Fixing hole diameter / D1 | 0.1693" | 4.300 mm |
| Inscribed circle diameter / IC | 0.3748" | 9.520 mm |
| Chip breaker (Ceratizit) / CBMD | -G12 | |
| Coating name / Grade (Ceratizit) / COATN | BK6425 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
