Description
Ceratizit Article Number: 6261743801
Ceratizit Material Number: 12549121
Ceratizit Komet Number (Unpacked): W78 32070.0466
Ceratizit Komet Number (Packed): W78320700466
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

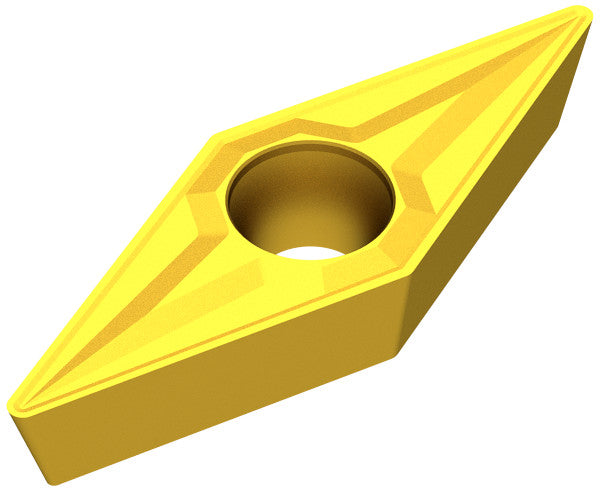

| Name | Ceratizit VOHT 160404-07 BK66 CoreLine HM indexable Insert 6261743801 | |
| EDP # | 0757674 | |
| Weight (1 pc.) | 0.3 oz | 7.5 g |
| designation | 160404.0000" | 4074261.600 mm |

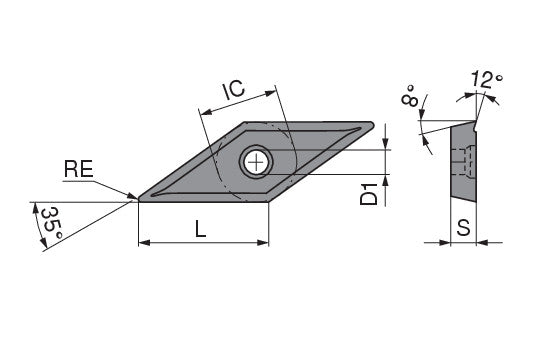

| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.6299" | 16.000 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Fixing hole diameter / D1 | 0.1732" | 4.400 mm |
| Inscribed circle diameter / IC | 0.3748" | 9.520 mm |
| Size | 16.0000" | 406.400 mm |
| Designation | VOHT 160404 | |
| Chip breaker (Ceratizit) / CBMD | -07 | |
| Coating name / Grade (Ceratizit) / COATN | BK66 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
