Description
Ceratizit Article Number: 6261744201
Ceratizit Material Number: 12549124
Ceratizit Komet Number (Unpacked): W78 32070.0866
Ceratizit Komet Number (Packed): W78320700866
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

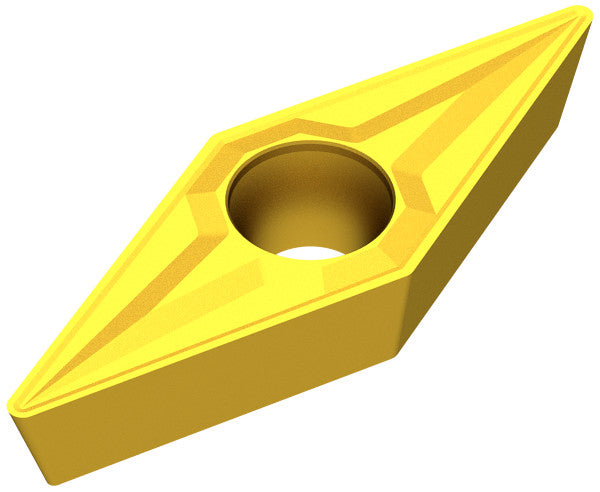

| Name | Ceratizit VOHT 160408-07 BK66 6261744201 | |
| EDP # | 0757675 | |
| Weight (1 pc.) | 0.3 oz | 7.4 g |
| designation | 160408 | |

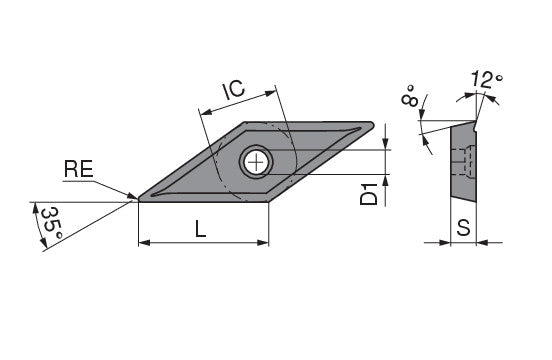

| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.6299" | 16.000 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Fixing hole diameter / D1 | 0.1732" | 4.400 mm |
| Inscribed circle diameter / IC | 0.3748" | 9.520 mm |
| Chip breaker (Ceratizit) / CBMD | -07 | |
| Coating name / Grade (Ceratizit) / COATN | BK66 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
