Description
Ceratizit Article Number: 6261350400
Ceratizit Material Number: 12549132
Ceratizit Komet Number (Unpacked): W79 18060.0421
Ceratizit Komet Number (Packed): W79180600421
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

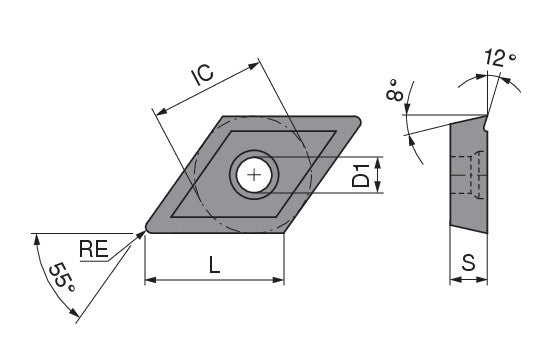

| Properties | ||
|---|---|---|

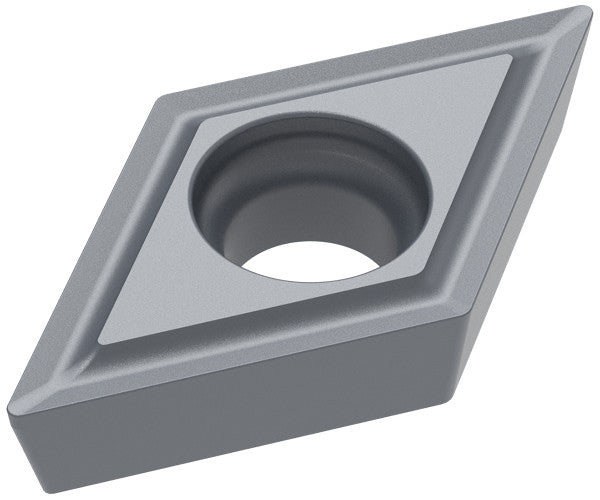

| Name | Ceratizit DOHT 070204-06 K10 CoreLine HM indexable Insert 6261350400 | |
| EDP # | 0757680 | |
| Weight (1 pc.) | 0.1 oz | 2.7 g |
| designation | 070204FN | |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.2913" | 7.400 mm |
| Insert thickness / S | 0.0945" | 2.400 mm |
| Fixing hole diameter / D1 | 0.1102" | 2.800 mm |
| Inscribed circle diameter / IC | 0.2500" | 6.350 mm |
| Size | 7.0000" | 177.800 mm |
| Designation | DOHT 070204FN | |
| Chip breaker (Ceratizit) / CBMD | -06 | |
| Coating name / Grade (Ceratizit) / COATN | K10 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
