Description
Ceratizit Article Number: 6261310400
Ceratizit Material Number: 12549133
Ceratizit Komet Number (Unpacked): W79 18060.042710
Ceratizit Komet Number (Packed): W7918060042710
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

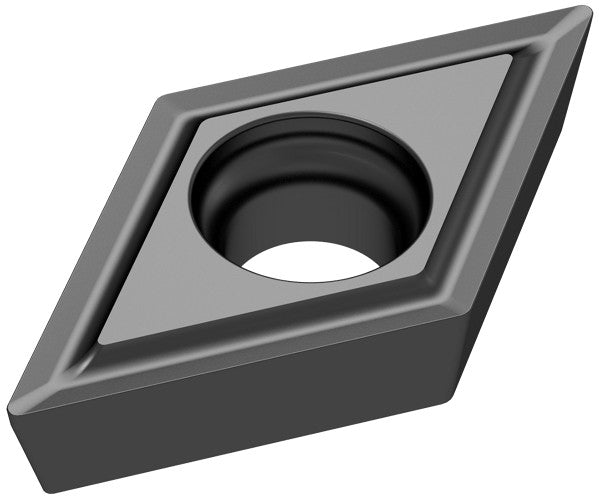

| Name | Ceratizit DOHT 070204-06 BK2710 CoreLine HM indexable Insert 6261310400 | |
| EDP # | 0757681 | |
| Weight (1 pc.) | 0.05 oz | 1.3 g |
| designation | 070204EN | |

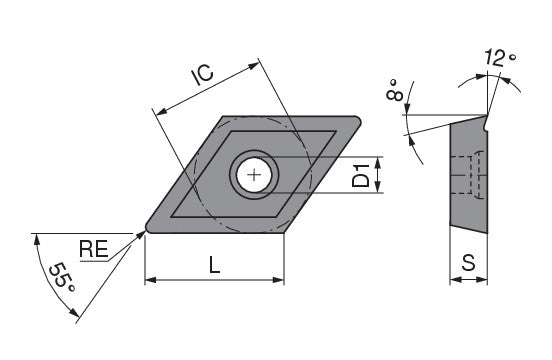

| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.2913" | 7.400 mm |
| Insert thickness / S | 0.0945" | 2.400 mm |
| Fixing hole diameter / D1 | 0.1102" | 2.800 mm |
| Inscribed circle diameter / IC | 0.2500" | 6.350 mm |
| Size | 7.0000" | 177.800 mm |
| Designation | DOHT 070204EN | |
| Chip breaker (Ceratizit) / CBMD | -06 | |
| Coating name / Grade (Ceratizit) / COATN | BK2710 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
