Description
Ceratizit Article Number: 1082240501
Ceratizit Material Number: 12549301
Ceratizit Komet Number (Unpacked): W83 13000.016115
Ceratizit Komet Number (Packed): W8313000016115
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit SOEX 050204-01 BK6115 1082240501 | |
| EDP # | 0757696 | |
| Weight (1 pc.) | 0.03 oz | 0.8 g |
| Product-Carbon-Footprint | C | |

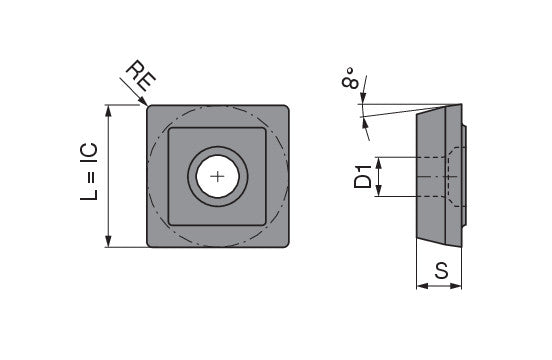

| Inscribed circle diameter / IC | 0.2189" | 5.560 mm |
| designation | 050204 | |
| insert thickness | 02 | |
| Fixing hole diameter / D1 | 0.0906" | 2.300 mm |
| Insert thickness / S | 0.0937" | 2.380 mm |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Coating name / Grade (Ceratizit) / COATN | BK6115 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
