Description
Ceratizit Article Number: 1082250621
Ceratizit Material Number: 12549356
Ceratizit Komet Number (Unpacked): W83 18210.087935
Ceratizit Komet Number (Packed): W8318210087935
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

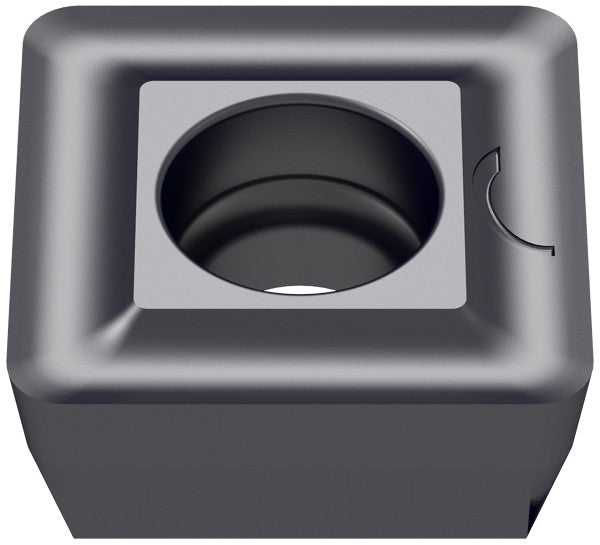

| Name | Ceratizit SOEX 060308-21 BK7935 CoreLine Carbide Drilling indexable Insert 1082250621 | |
| EDP # | 0757717 | |
| Weight (1 pc.) | 0.1 oz | 2.4 g |
| Product-Carbon-Footprint | C | |
| Inscribed circle diameter / IC | 0.2500" | 6.350 mm |
| designation | 60308.0000" | 1531823.200 mm |
| insert thickness | 3.0000" | 76.200 mm |
| Fixing hole diameter / D1 | 0.1043" | 2.650 mm |
| Insert thickness / S | 0.1252" | 3.180 mm |
| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.2500" | 6.350 mm |
| Size | 6.0000" | 152.400 mm |
| Coating name / Grade (Ceratizit) / COATN | BK7935 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
