Description
Ceratizit Article Number: 1082230713
Ceratizit Material Number: 12549378
Ceratizit Komet Number (Unpacked): W83 23130.088425
Ceratizit Komet Number (Packed): W8323130088425
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

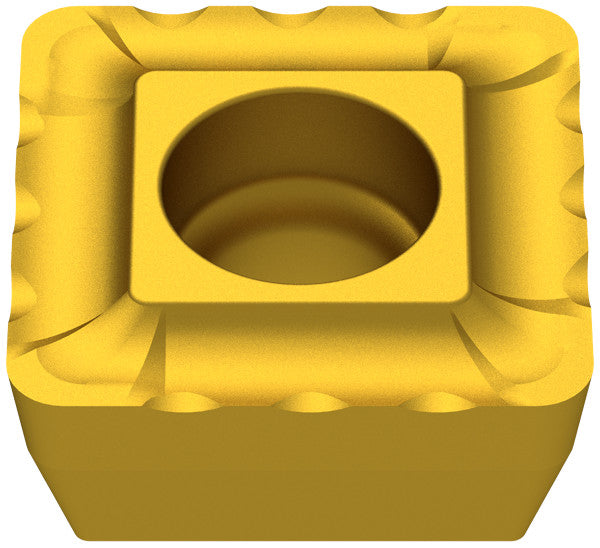

| Name | Ceratizit INSERT SOEX 07T308-13 BK8425 CoreLine Carbide Drilling indexable 1082230713 | |
| EDP # | 0757725 | |
| Weight (1 pc.) | 0.1 oz | 3.5 g |
| Product-Carbon-Footprint | C | |
| Inscribed circle diameter / IC | 0.3126" | 7.940 mm |
| designation | 07T308 | |
| insert thickness | T3 | |
| Fixing hole diameter / D1 | 0.1122" | 2.850 mm |
| Insert thickness / S | 0.1409" | 3.580 mm |
| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.3126" | 7.940 mm |
| Size | 7.0000" | 177.800 mm |
| Coating name / Grade (Ceratizit) / COATN | BK8425 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
