Description
Ceratizit Article Number: 1082250913
Ceratizit Material Number: 12549408
Ceratizit Komet Number (Unpacked): W83 32130.087935
Ceratizit Komet Number (Packed): W8332130087935
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

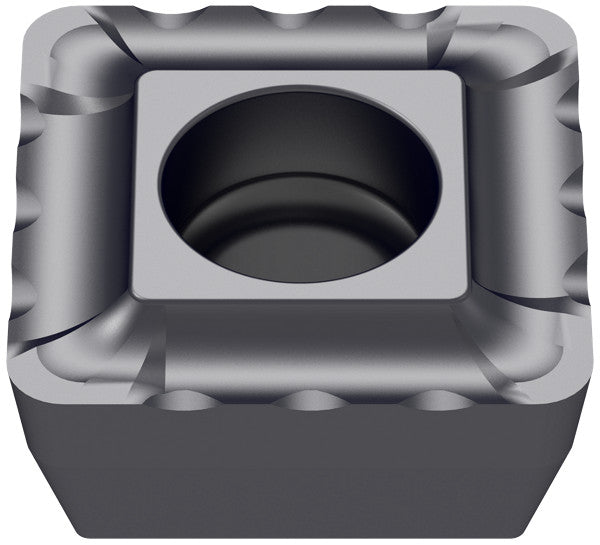

| Name | Ceratizit SOEX 090408-13 BK7935 CoreLine Carbide Drilling indexable Insert 1082250913 | |
| EDP # | 0757736 | |
| Weight (1 pc.) | 0.2 oz | 5.0 g |
| Product-Carbon-Footprint | D | |
| Inscribed circle diameter / IC | 0.3748" | 9.520 mm |
| designation | 90408.0000" | 2296363.200 mm |
| insert thickness | 4.0000" | 101.600 mm |
| Fixing hole diameter / D1 | 0.1614" | 4.100 mm |
| Insert thickness / S | 0.1720" | 4.370 mm |
| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.3748" | 9.520 mm |
| Size | 9.0000" | 228.600 mm |
| Coating name / Grade (Ceratizit) / COATN | BK7935 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
