Description
Ceratizit Article Number: 1082251113
Ceratizit Material Number: 12549442
Ceratizit Komet Number (Unpacked): W83 39130.087935
Ceratizit Komet Number (Packed): W8339130087935
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

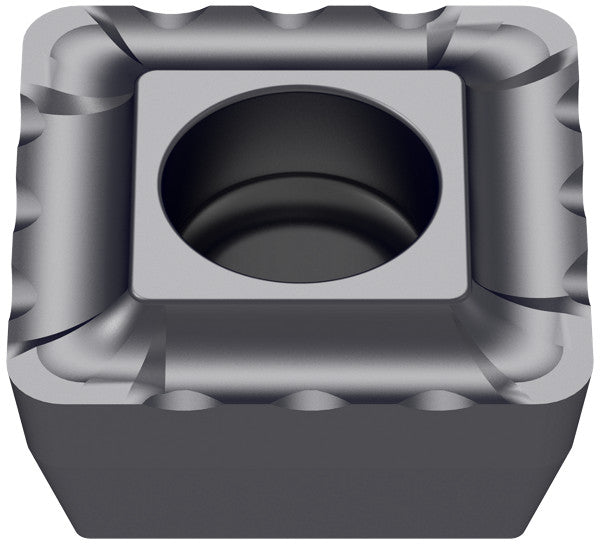

| Name | Ceratizit INSERT SOEX110508-13 BK7935 CoreLine Carbide Drilling indexable 1082251113 | |
| EDP # | 0757744 | |
| Weight (1 pc.) | 0.3 oz | 7.3 g |

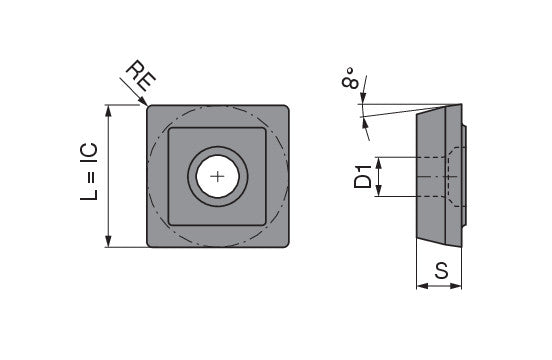

| Inscribed circle diameter / IC | 0.4370" | 11.100 mm |
| designation | 110508.0000" | 2806903.200 mm |
| insert thickness | 5.0000" | 127.000 mm |
| Fixing hole diameter / D1 | 0.1614" | 4.100 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.4370" | 11.100 mm |
| Size | 11.0000" | 279.400 mm |
| Coating name / Grade (Ceratizit) / COATN | BK7935 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
