Description
Ceratizit Article Number: 1082251121
Ceratizit Material Number: 12549450
Ceratizit Komet Number (Unpacked): W83 39210.087935
Ceratizit Komet Number (Packed): W8339210087935
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

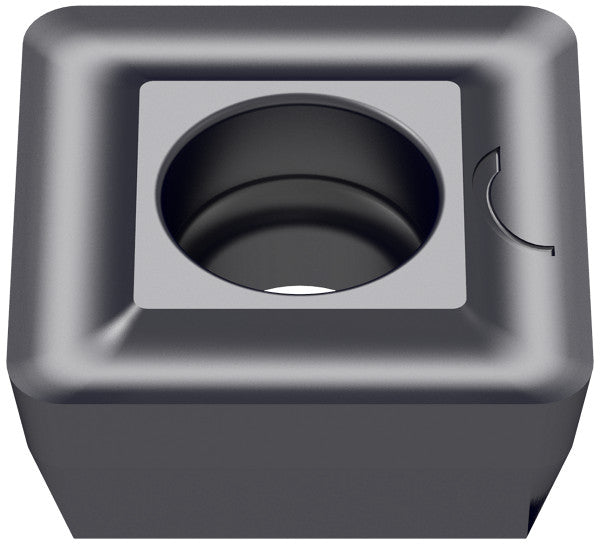

| Name | Ceratizit SOEX 110508-21 BK7935 CoreLine Carbide Drilling indexable Insert 1082251121 | |
| EDP # | 0757746 | |
| Weight (1 pc.) | 0.3 oz | 8.0 g |
| Product-Carbon-Footprint | C | |

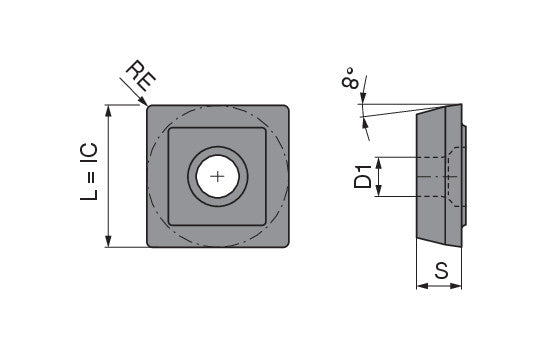

| Inscribed circle diameter / IC | 0.4370" | 11.100 mm |
| designation | 110508.0000" | 2806903.200 mm |
| insert thickness | 5.0000" | 127.000 mm |
| Fixing hole diameter / D1 | 0.1614" | 4.100 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.4370" | 11.100 mm |
| Size | 11.0000" | 279.400 mm |
| Coating name / Grade (Ceratizit) / COATN | BK7935 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
