Description
Ceratizit Article Number: 51900300
Ceratizit Material Number: 12550516
Ceratizit Komet Number (Unpacked): 12550 516
Ceratizit Komet Number (Packed): 12550516
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

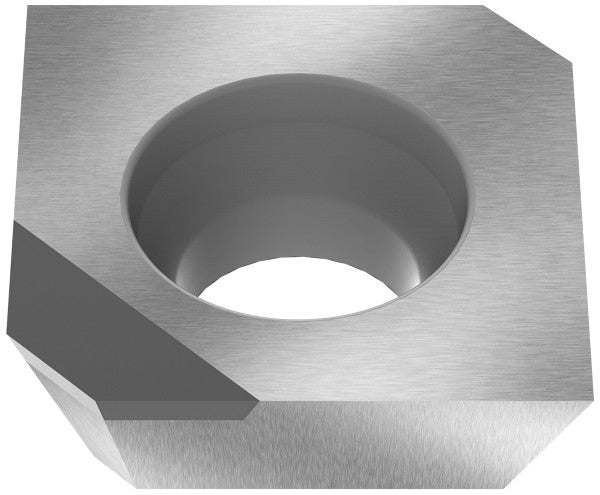

| Name | Ceratizit SDHW 1204AETN-010D_A5 CTBS10U CoreLine PcBN Milling indexable Insert 51900300 | |
| EDP # | 0757762 | |
| Weight (1 pc.) | 0.3 oz | 8.1 g |
| designation | 1204AETN-2 | |

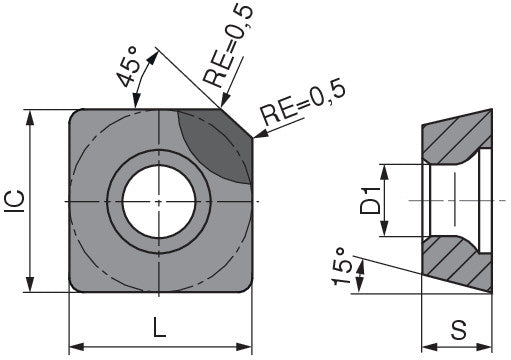

| Corner radius / RE | 0.0197" | 0.500 mm |
| Cutting edge effective length / LE | 0.0787" | 2.000 mm |
| Inscribed circle diameter / IC | 0.5000" | 12.700 mm |
| Fixing hole diameter / D1 | 0.2165" | 5.500 mm |
| Cutting edge length / L | 0.5000" | 12.700 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Clearance angle major / AN | 20 ° | |
| Insert length / INSL | 0.6378" | 16.200 mm |
| Coating name / Grade (Ceratizit) / COATN | CTBS10U | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
