Description
Ceratizit Article Number: 71108904
Ceratizit Material Number: 12550551
Ceratizit Komet Number (Unpacked): 12550 551
Ceratizit Komet Number (Packed): 12550551
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.

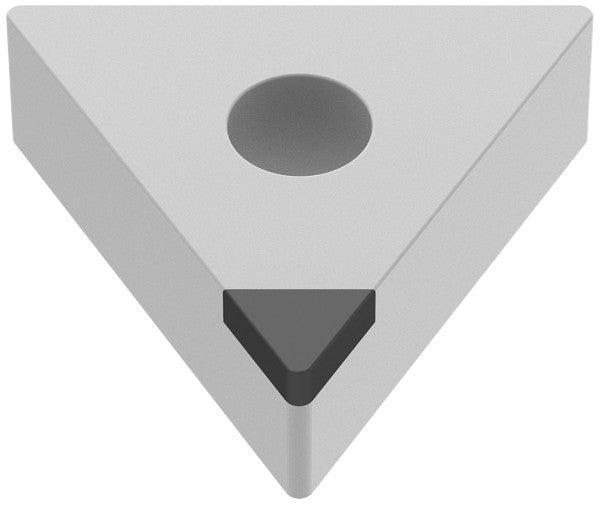

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit TNGA 160404TN-012E_A4 CTBH40U CoreLine 71108904 | |
| EDP # | 0757785 | |
| Weight (1 pc.) | 0.4 oz | 10.0 g |
| designation | 160404TN | |

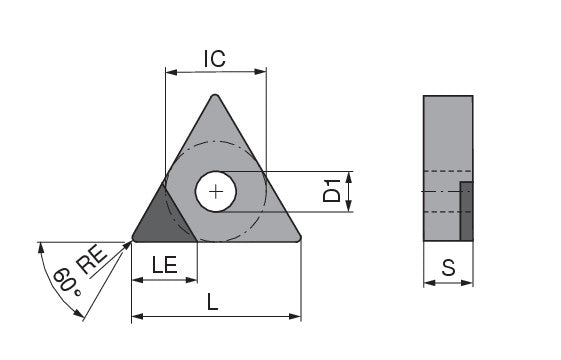

| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.6496" | 16.500 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Fixing hole diameter / D1 | 0.1500" | 3.810 mm |
| Inscribed circle diameter / IC | 0.3748" | 9.520 mm |
| 331TN | ||
| support chamfer angle / GB | 25 ° | |
| TCE (NOI) | A (1) | |
| Cutting edge effective length / LE | 0.1378" | 3.500 mm |
| Face land width / BN | 0.0047" | 0.120 mm |
| Size | 16.0000" | 406.400 mm |
| Designation | TNGA 160404TN | |
| Insert index count / NOI | 1.0000" | 25.400 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | CTBH40U | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
