Description
Ceratizit Article Number: 71123802
Ceratizit Material Number: 12550609
Ceratizit Komet Number (Unpacked): 12550 609
Ceratizit Komet Number (Packed): 12550609
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.

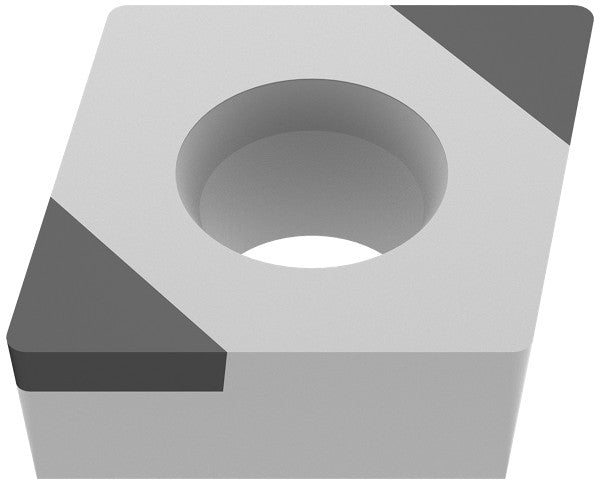

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit CCGW 09T304FN_B3-Q CTBH40U CoreLine 71123802 | |
| EDP # | 0757840 | |
| Weight (1 pc.) | 0.2 oz | 4.7 g |
| designation | 09T304FN | |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.3819" | 9.700 mm |
| Insert thickness / S | 0.1563" | 3.970 mm |
| Fixing hole diameter / D1 | 0.1732" | 4.400 mm |
| Inscribed circle diameter / IC | 0.3748" | 9.520 mm |
| 32.51FN | ||
| TCE (NOI) | B (2) | |
| Cutting edge effective length / LE | 0.1220" | 3.100 mm |
| Size | 9.0000" | 228.600 mm |
| Designation | CCGW 09T304FN | |
| Insert index count / NOI | 2.0000" | 50.800 mm |
| Chip breaker (Ceratizit) / CBMD | -Q | |
| Coating name / Grade (Ceratizit) / COATN | CTBH40U | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
