Description
Ceratizit Article Number: 71136102
Ceratizit Material Number: 12550743
Ceratizit Komet Number (Unpacked): 12550 743
Ceratizit Komet Number (Packed): 12550743
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

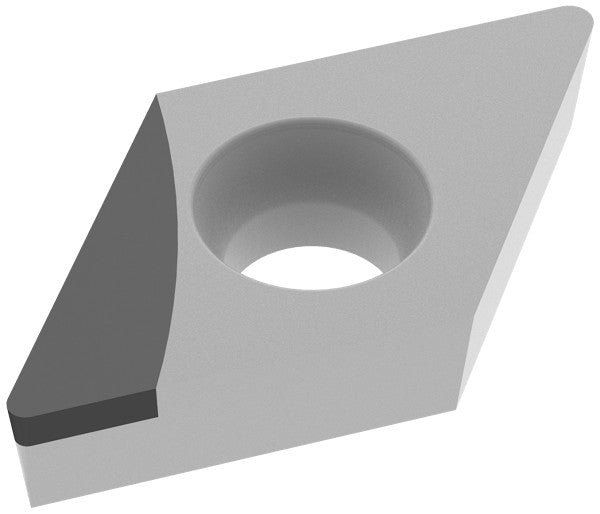

| Name | Ceratizit DCGT 070204FL_A5 CTDPD20 CoreLine - PCD Turning indexable Insert - 71136102 | |
| EDP # | 0757942 | |
| Weight (1 pc.) | 0.1 oz | 2.5 g |
| designation | 070204FLL | |

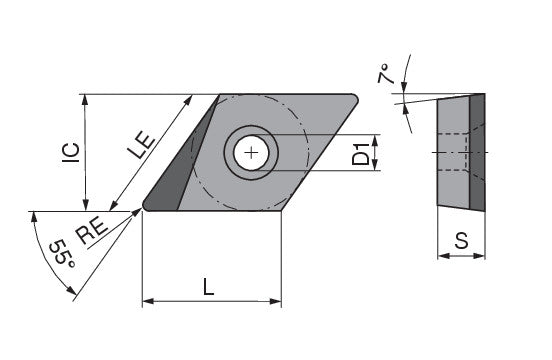

| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.3051" | 7.750 mm |
| Insert thickness / S | 0.0937" | 2.380 mm |
| Fixing hole diameter / D1 | 0.1102" | 2.800 mm |
| Inscribed circle diameter / IC | 0.2500" | 6.350 mm |
| 21.51FL | ||
| TCE (NOI) | A (1) | |
| Cutting edge effective length / LE | 0.2165" | 5.500 mm |
| Size | 7.0000" | 177.800 mm |
| Designation | DCGT 070204FLL | |
| Insert index count / NOI | 1.0000" | 25.400 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | CTDPD20 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
