Description
Ceratizit Article Number: 71140410
Ceratizit Material Number: 12550770
Ceratizit Komet Number (Unpacked): 12550 770
Ceratizit Komet Number (Packed): 12550770
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

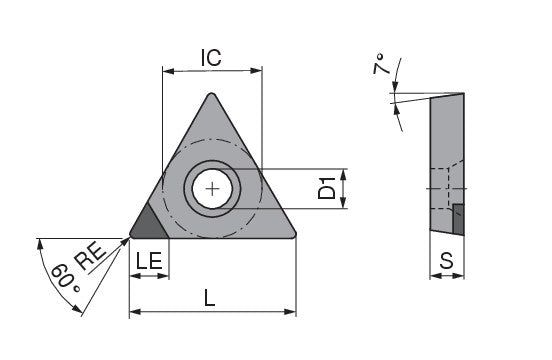

| Properties | ||
|---|---|---|
| Name | Ceratizit TCGW 110208FN_A3 CTBH20U CoreLine - - 71140410 | |
| EDP # | 0757969 | |
| Weight (1 pc.) | 0.2 oz | 5.0 g |
| designation | 110208FN | |
| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.4331" | 11.000 mm |
| Insert thickness / S | 0.0937" | 2.380 mm |
| Fixing hole diameter / D1 | 0.1102" | 2.800 mm |
| Inscribed circle diameter / IC | 0.2500" | 6.350 mm |
| 21.52FN | ||
| TCE (NOI) | A (1) | |
| Cutting edge effective length / LE | 0.1181" | 3.000 mm |
| Size | 11.0000" | 279.400 mm |
| Designation | TCGW 110208FN | |
| Insert index count / NOI | 1.0000" | 25.400 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | CTBH20U | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
