Description
Ceratizit Article Number: 71140906
Ceratizit Material Number: 12550783
Ceratizit Komet Number (Unpacked): 12550 783
Ceratizit Komet Number (Packed): 12550783
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

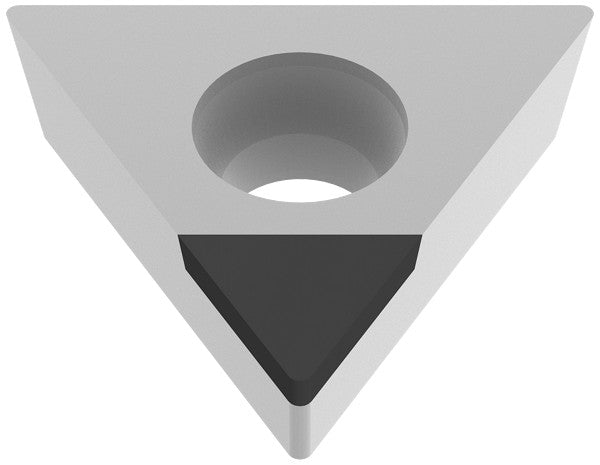

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit TCGW 110202TN-012E_A4 CTBH40U 71140906 | |
| EDP # | 0757981 | |
| Weight (1 pc.) | 0.2 oz | 5.0 g |
| designation | 110202TN | |

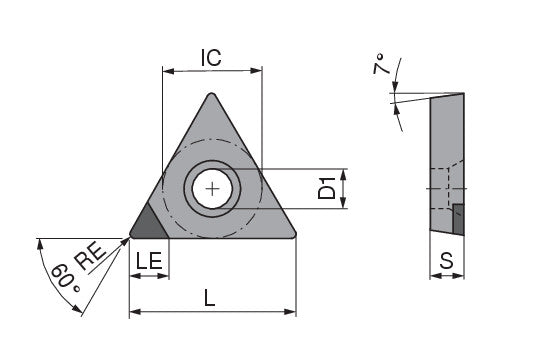

| Corner radius / RE | 0.0079" | 0.200 mm |
| Cutting edge length / L | 0.4331" | 11.000 mm |
| Insert thickness / S | 0.0937" | 2.380 mm |
| Fixing hole diameter / D1 | 0.1102" | 2.800 mm |
| Inscribed circle diameter / IC | 0.2500" | 6.350 mm |
| support chamfer angle / GB | 25 ° | |
| TCE (NOI) | A (1) | |
| Cutting edge effective length / LE | 0.1496" | 3.800 mm |
| Face land width / BN | 0.0047" | 0.120 mm |
| Insert index count / NOI | 1 | |
| Chip breaker (Ceratizit) / CBMD | > | |
| Coating name / Grade (Ceratizit) / COATN | CTBH40U | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
