Description
Ceratizit Article Number: 71154900
Ceratizit Material Number: 12550806
Ceratizit Komet Number (Unpacked): 12550 806
Ceratizit Komet Number (Packed): 12550806
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

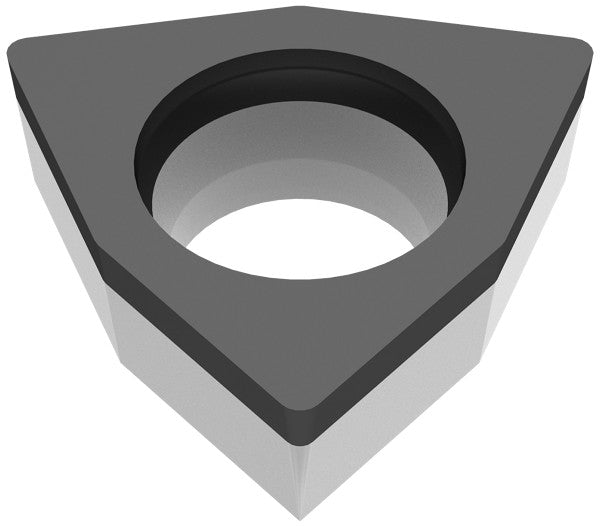

| Name | Ceratizit WCGW 020102TN-012E_F3 CTBH40U CoreLine 71154900 | |
| EDP # | 0758003 | |
| Weight (1 pc.) | 0.1 oz | 1.5 g |
| designation | 020102TN | |

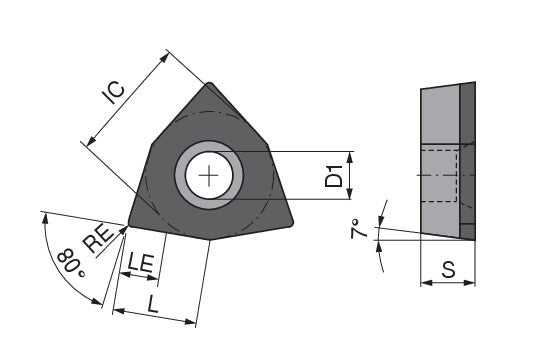

| Corner radius / RE | 0.0079" | 0.200 mm |
| Cutting edge length / L | 0.1063" | 2.700 mm |
| Insert thickness / S | 0.0622" | 1.580 mm |
| Fixing hole diameter / D1 | 0.0906" | 2.300 mm |
| Inscribed circle diameter / IC | 0.1563" | 3.970 mm |
| 1.21.5TN | ||
| support chamfer angle / GB | 25 ° | |
| TCE (NOI) | F | |
| Cutting edge effective length / LE | 0.1063" | 2.700 mm |
| Face land width / BN | 0.0047" | 0.120 mm |
| Size | 2.0000" | 50.800 mm |
| Designation | WCGW 020102TN | |
| Insert index count / NOI | 3.0000" | 76.200 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | CTBH40U | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
