Description
Ceratizit Article Number: 71161262
Ceratizit Material Number: 12550909
Ceratizit Komet Number (Unpacked): 12550 909
Ceratizit Komet Number (Packed): 12550909
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

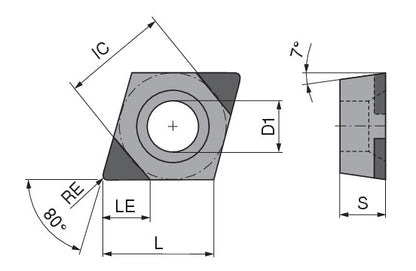

| Properties | ||
|---|---|---|
| Name | Ceratizit CCGW 060208TN-014E_B3 CTBH20C CoreLine 71161262 | |
| EDP # | 0758050 | |
| Weight (1 pc.) | 0.04 oz | 1.0 g |
| designation | 060208TN | |
| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.2520" | 6.400 mm |
| Insert thickness / S | 0.0937" | 2.380 mm |
| Fixing hole diameter / D1 | 0.1102" | 2.800 mm |
| Inscribed circle diameter / IC | 0.2500" | 6.350 mm |
| 21.52TN | ||
| support chamfer angle / GB | 25 ° | |
| TCE (NOI) | B (2) | |
| Cutting edge effective length / LE | 0.1102" | 2.800 mm |
| Face land width / BN | 0.0055" | 0.140 mm |
| Size | 6.0000" | 152.400 mm |
| Designation | CCGW 060208TN | |
| Insert index count / NOI | 2.0000" | 50.800 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | CTBH20C | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
