Description
Ceratizit Article Number: 71164114
Ceratizit Material Number: 12551126
Ceratizit Komet Number (Unpacked): 12551 126
Ceratizit Komet Number (Packed): 12551126
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

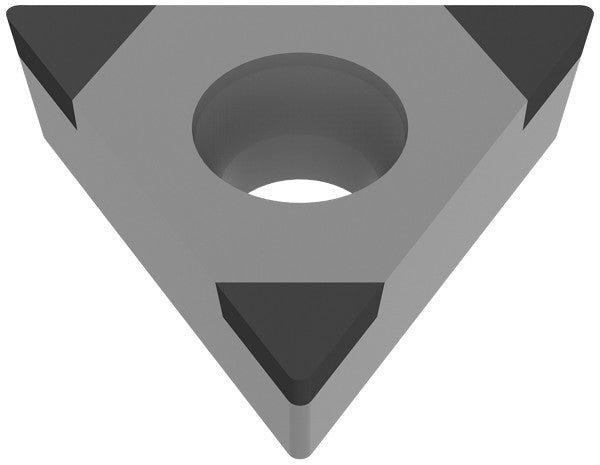

| Name | Ceratizit TCGW 110204EN_C3 CTBS20C CoreLine - PcBN Turning indexable Insert - 71164114 | |
| EDP # | 0758232 | |
| Weight (1 pc.) | 0.1 oz | 2.5 g |
| designation | 110204EN | |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.4331" | 11.000 mm |
| Insert thickness / S | 0.0937" | 2.380 mm |
| Fixing hole diameter / D1 | 0.1102" | 2.800 mm |
| Inscribed circle diameter / IC | 0.2500" | 6.350 mm |
| 21.51EN | ||
| TCE (NOI) | C (3) | |
| Cutting edge effective length / LE | 0.0984" | 2.500 mm |
| Size | 11.0000" | 279.400 mm |
| Designation | TCGW 110204EN | |
| Insert index count / NOI | 3.0000" | 76.200 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | CTBS20C | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
