Description
Ceratizit Article Number: 71164362
Ceratizit Material Number: 12551217
Ceratizit Komet Number (Unpacked): 12551 217
Ceratizit Komet Number (Packed): 12551217
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

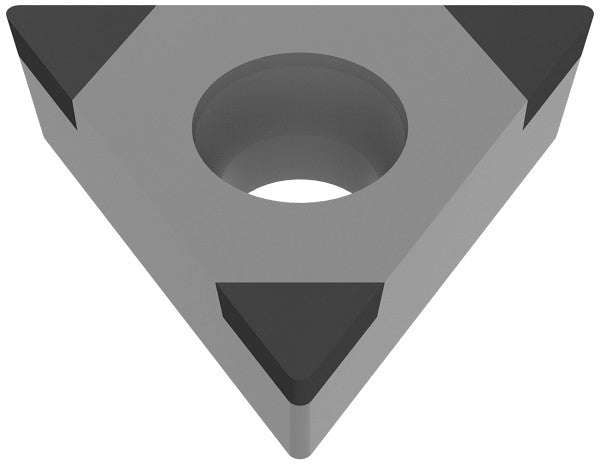

| Name | Ceratizit TCGW 090208TN-014F_C2 CTBH40C CoreLine 71164362 | |
| EDP # | 0758291 | |
| Weight (1 pc.) | 0.1 oz | 2.3 g |
| designation | 090208TN | |
| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.3780" | 9.600 mm |
| Insert thickness / S | 0.0937" | 2.380 mm |
| Fixing hole diameter / D1 | 0.0984" | 2.500 mm |
| Inscribed circle diameter / IC | 0.2189" | 5.560 mm |
| 1.81.5.2TN | ||
| support chamfer angle / GB | 20 ° | |
| TCE (NOI) | C (3) | |
| Cutting edge effective length / LE | 0.0709" | 1.800 mm |
| Face land width / BN | 0.0055" | 0.140 mm |
| Size | 9.0000" | 228.600 mm |
| Designation | TCGW 090208TN | |
| Insert index count / NOI | 3.0000" | 76.200 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | CTBH40C | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
