Description
Ceratizit Article Number: 71316204
Ceratizit Material Number: 12551366
Ceratizit Komet Number (Unpacked): 12551 366
Ceratizit Komet Number (Packed): 12551366
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

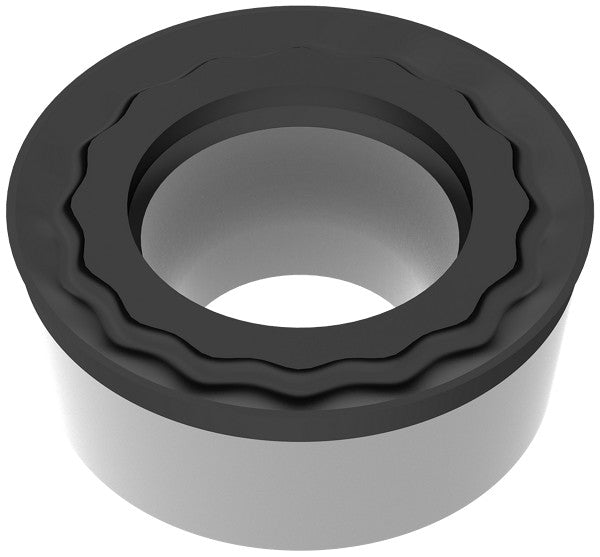

| Name | Ceratizit RCGT 10T3M0FN_F10-CB2 CTDPS30 CoreLine PCD Turning indexable Insert 71316204 | |
| EDP # | 0758334 | |
| Weight (1 pc.) | 0.1 oz | 3.8 g |
| designation | 10T3M0FN | |
| Corner radius / RE | 0.1969" | 5.000 mm |
| Insert thickness / S | 0.1563" | 3.970 mm |
| Fixing hole diameter / D1 | 0.1732" | 4.400 mm |
| Inscribed circle diameter / IC | 0.3937" | 10.000 mm |
| 10T3M0FN | ||
| TCE (NOI) | F | |
| Cutting edge effective length / LE | 0.3937" | 10.000 mm |
| Size | 10.0000" | 254.000 mm |
| Designation | RCGT 10T3M0FN | |
| Insert index count / NOI | 1.0000" | 25.400 mm |
| Chip breaker (Ceratizit) / CBMD | -CB2 | |
| Coating name / Grade (Ceratizit) / COATN | CTDPS30 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
