Description
Ceratizit Article Number: 71402212
Ceratizit Material Number: 12551482
Ceratizit Komet Number (Unpacked): 12551 482
Ceratizit Komet Number (Packed): 12551482
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.

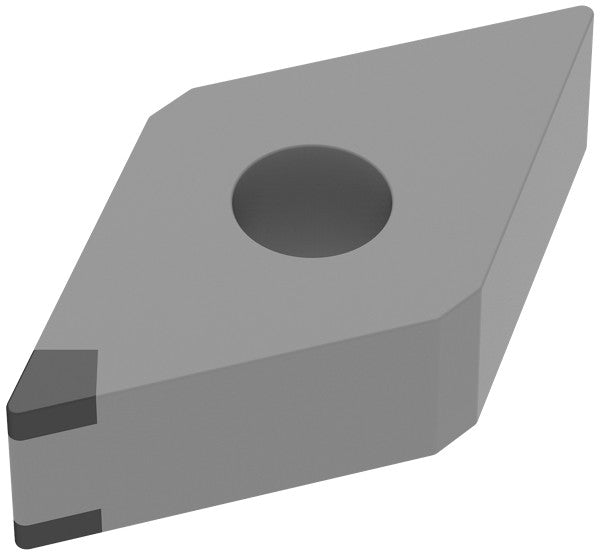

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

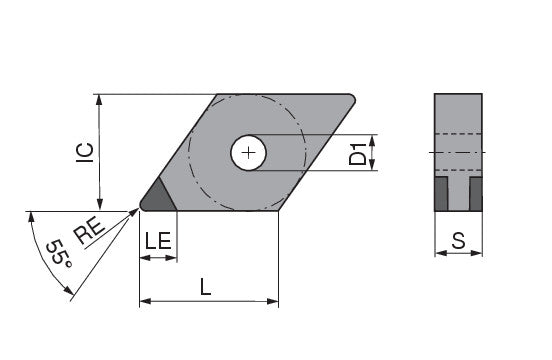

| Properties | ||
|---|---|---|
| Name | Ceratizit DNGA 150604FN_K3 CTBH20C CoreLine - - 71402212 | |
| EDP # | 0758422 | |
| Weight (1 pc.) | 1.0 oz | 20.0 g |
| designation | 150604FN | |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.6102" | 15.500 mm |
| Insert thickness / S | 0.2500" | 6.350 mm |
| Fixing hole diameter / D1 | 0.2031" | 5.160 mm |
| Inscribed circle diameter / IC | 0.5000" | 12.700 mm |
| 441FN | ||
| TCE (NOI) | K (2) | |
| Cutting edge effective length / LE | 0.1102" | 2.800 mm |
| Size | 15.0000" | 381.000 mm |
| Designation | DNGA 150604FN | |
| Insert index count / NOI | 2.0000" | 50.800 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | CTBH20C | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
