Description
Ceratizit Article Number: 71402382
Ceratizit Material Number: 12551496
Ceratizit Komet Number (Unpacked): 12551 496
Ceratizit Komet Number (Packed): 12551496
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

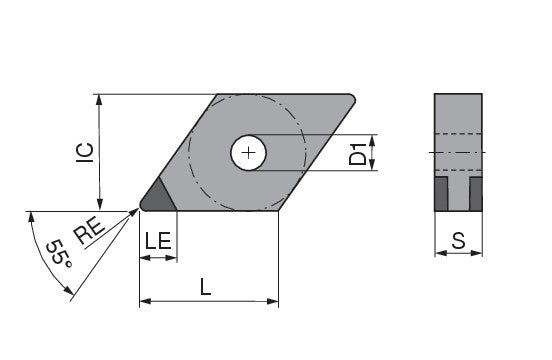

| Properties | ||
|---|---|---|

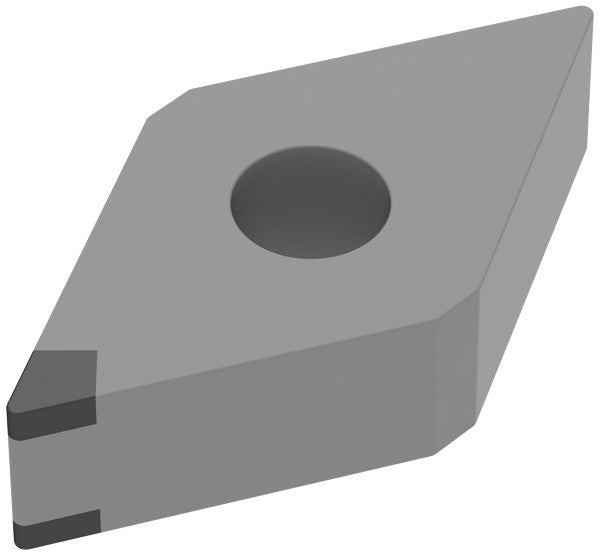

| Name | Ceratizit DNGA 150604SN-014G_K3 CTBH40C 71402382 | |
| EDP # | 0758430 | |
| Weight (1 pc.) | 1.0 oz | 20.0 g |
| designation | 150604SN | |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.6102" | 15.500 mm |
| Insert thickness / S | 0.2500" | 6.350 mm |
| Fixing hole diameter / D1 | 0.2031" | 5.160 mm |
| Inscribed circle diameter / IC | 0.5000" | 12.700 mm |
| support chamfer angle / GB | 35 ° | |
| TCE (NOI) | K (2) | |
| Cutting edge effective length / LE | 0.1102" | 2.800 mm |
| Face land width / BN | 0.0055" | 0.140 mm |
| Insert index count / NOI | 2 | |
| Chip breaker (Ceratizit) / CBMD | > | |
| Coating name / Grade (Ceratizit) / COATN | CTBH40C | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
