Description
Ceratizit Article Number: 71404212
Ceratizit Material Number: 12551522
Ceratizit Komet Number (Unpacked): 12551 522
Ceratizit Komet Number (Packed): 12551522
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

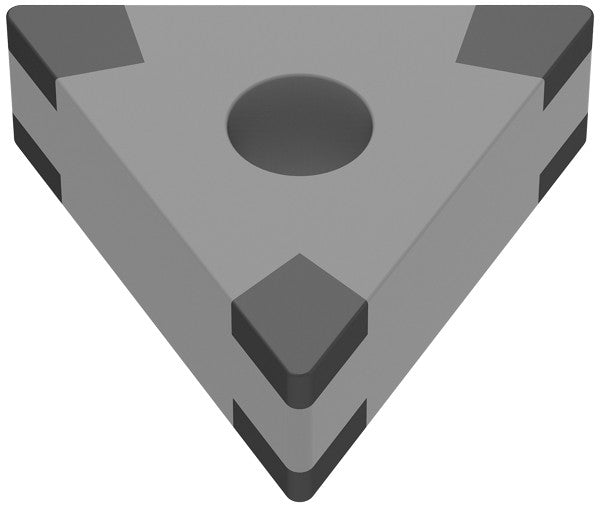

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit TNGA 160404FN_M3 CTBH20C 71404212 | |
| EDP # | 0758452 | |
| Weight (1 pc.) | 0.4 oz | 11.2 g |
| designation | 160404FN | |

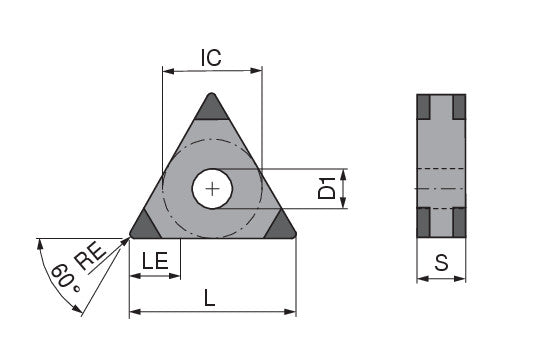

| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.6496" | 16.500 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Fixing hole diameter / D1 | 0.1500" | 3.810 mm |
| Inscribed circle diameter / IC | 0.3748" | 9.520 mm |
| TCE (NOI) | M (6) | |
| Cutting edge effective length / LE | 0.1102" | 2.800 mm |
| Insert index count / NOI | 6 | |
| Chip breaker (Ceratizit) / CBMD | > | |
| Coating name / Grade (Ceratizit) / COATN | CTBH20C | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
