Description
Ceratizit Article Number: 71405134
Ceratizit Material Number: 12551562
Ceratizit Komet Number (Unpacked): 12551 562
Ceratizit Komet Number (Packed): 12551562
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

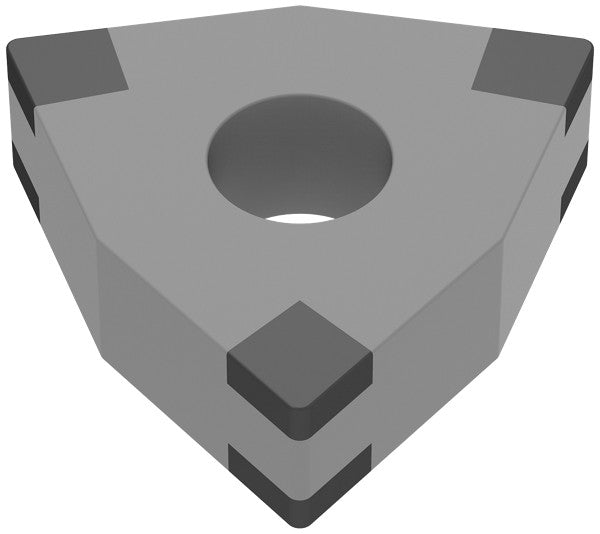

| Name | Ceratizit WNGA 080408SN-009C_M3 CTBS20C CoreLine PcBN Turning indexable Insert 71405134 | |
| EDP # | 0758483 | |
| Weight (1 pc.) | 0.4 oz | 11.0 g |
| designation | 080408SN | |

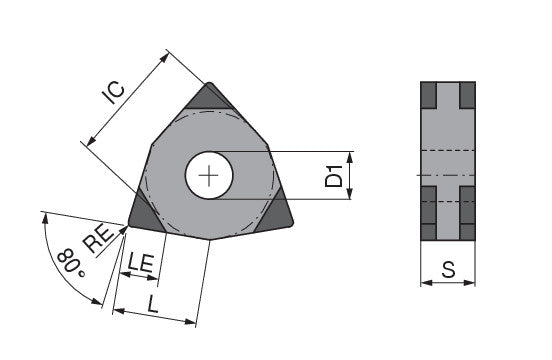

| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.3346" | 8.500 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Fixing hole diameter / D1 | 0.2020" | 5.130 mm |
| Inscribed circle diameter / IC | 0.5000" | 12.700 mm |
| 432SN | ||
| support chamfer angle / GB | 15 ° | |
| TCE (NOI) | M (6) | |
| Cutting edge effective length / LE | 0.0984" | 2.500 mm |
| Face land width / BN | 0.0035" | 0.090 mm |
| Size | 8.0000" | 203.200 mm |
| Designation | WNGA 080408SN | |
| Insert index count / NOI | 6.0000" | 152.400 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | CTBS20C | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
