Description
Ceratizit Article Number: 71405262
Ceratizit Material Number: 12551569
Ceratizit Komet Number (Unpacked): 12551 569
Ceratizit Komet Number (Packed): 12551569
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

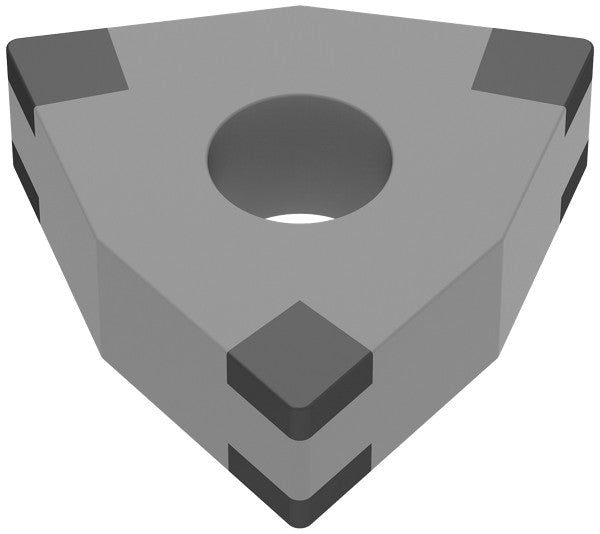

| Name | Ceratizit WNGA 080404SN-013E_M3 CTBH20C CoreLine PcBN Turning indexable Insert 71405262 | |
| EDP # | 0758489 | |
| Weight (1 pc.) | 0.4 oz | 11.1 g |
| designation | 080404SN | |

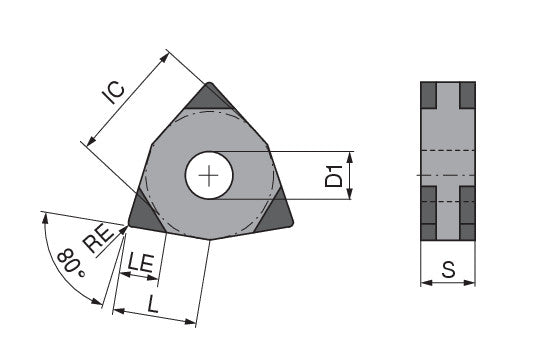

| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.3346" | 8.500 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Fixing hole diameter / D1 | 0.2020" | 5.130 mm |
| Inscribed circle diameter / IC | 0.5000" | 12.700 mm |
| 431SN | ||
| support chamfer angle / GB | 25 ° | |
| TCE (NOI) | M (6) | |
| Cutting edge effective length / LE | 0.1102" | 2.800 mm |
| Face land width / BN | 0.0051" | 0.130 mm |
| Size | 8.0000" | 203.200 mm |
| Designation | WNGA 080404SN | |
| Insert index count / NOI | 6.0000" | 152.400 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | CTBH20C | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
