Description
Ceratizit Article Number: 6286116300
Ceratizit Material Number: 12565330
Ceratizit Komet Number (Unpacked): M05 90110
Ceratizit Komet Number (Packed): M0590110
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

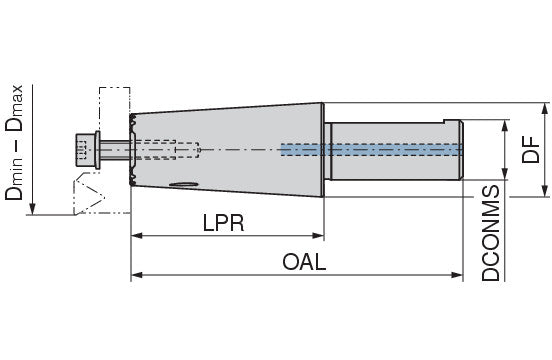

| Properties | ||
|---|---|---|
| Name | Ceratizit KZK.25-63 CoreLine Serrated Body hi.flex 6286116300 | |
| EDP # | 0758511 | |
| Weight (1 pc.) | 11.0 oz | 313 g |
| Productsystem | hi.flex | |
| Cutting diameter minimum / DCN | 0.9843" | 25.000 mm |
| Mounting spigot diameter / DCONMS g6 | 0.6299" | 16.000 mm |
| Overall length / OAL | 5.0547" | 128.390 mm |
| Dmin - Dmax | 25 - 63 | |
| Protruding length / LPR | 3.6193" | 91.930 mm |
| Body length / LB | 0.9843" | 25.000 mm |
| Flange diameter / DF | 0.9449" | 24.000 mm |
| Neck diameter (BD) / BD | 0.7480" | 19.000 mm |
| Abbildung | 2.0000" | 50.800 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
