Description
Ceratizit Article Number: 1082152601
Ceratizit Material Number: 12566283
Ceratizit Komet Number (Unpacked): W29 34010.087935
Ceratizit Komet Number (Packed): W2934010087935
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

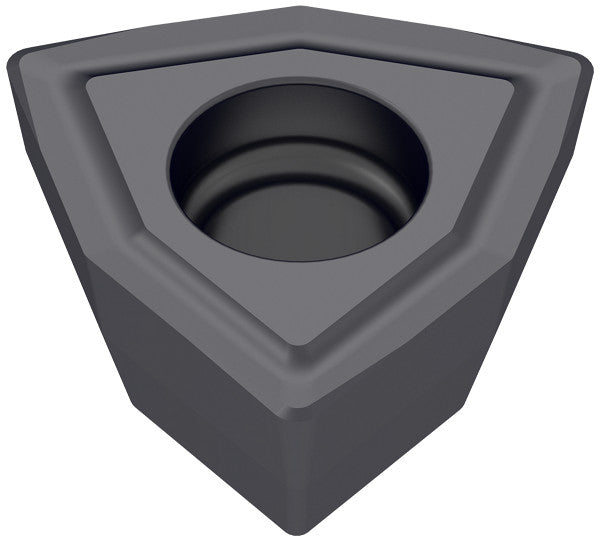

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit WOEX 06T308-01 BK7935 CoreLine Carbide Drilling indexable Insert 1082152601 | |
| EDP # | 0758514 | |
| Weight (1 pc.) | 0.1 oz | 3.6 g |
| Inscribed circle diameter / IC | 0.3937" | 10.000 mm |
| designation | 06T308 | |
| insert thickness | T3 | |
| Fixing hole diameter / D1 | 0.1594" | 4.050 mm |
| Insert thickness / S | 0.1496" | 3.800 mm |
| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.2598" | 6.600 mm |
| Size | 6.0000" | 152.400 mm |
| Coating name / Grade (Ceratizit) / COATN | BK7935 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
