Description
Ceratizit Article Number: 1082153201
Ceratizit Material Number: 12566292
Ceratizit Komet Number (Unpacked): W29 58010.087935
Ceratizit Komet Number (Packed): W2958010087935
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

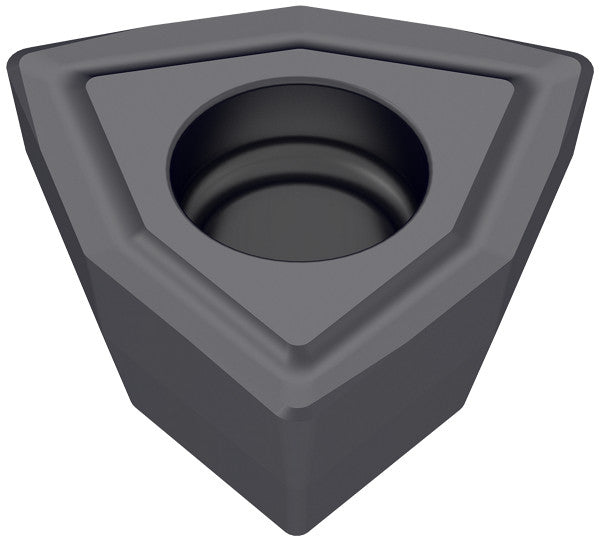

| Name | Ceratizit WOEX 120608-01 BK7935 CoreLine Carbide Drilling indexable Insert 1082153201 | |
| EDP # | 0758520 | |
| Weight (1 pc.) | 1.0 oz | 22.9 g |

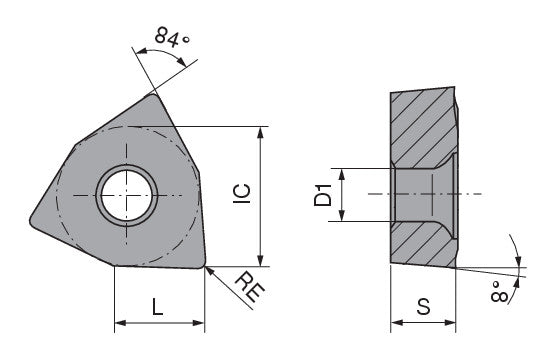

| Inscribed circle diameter / IC | 0.6929" | 17.600 mm |
| designation | 120608.0000" | 3063443.200 mm |
| insert thickness | 6.0000" | 152.400 mm |
| Fixing hole diameter / D1 | 0.2343" | 5.950 mm |
| Insert thickness / S | 0.2362" | 6.000 mm |
| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.4567" | 11.600 mm |
| Size | 12.0000" | 304.800 mm |
| Coating name / Grade (Ceratizit) / COATN | BK7935 | |
| Product-Carbon-Footprint | D | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
