Description
Ceratizit Article Number: 1082150501
Ceratizit Material Number: 12567097
Ceratizit Komet Number (Unpacked): W29 24010.047935
Ceratizit Komet Number (Packed): W2924010047935
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

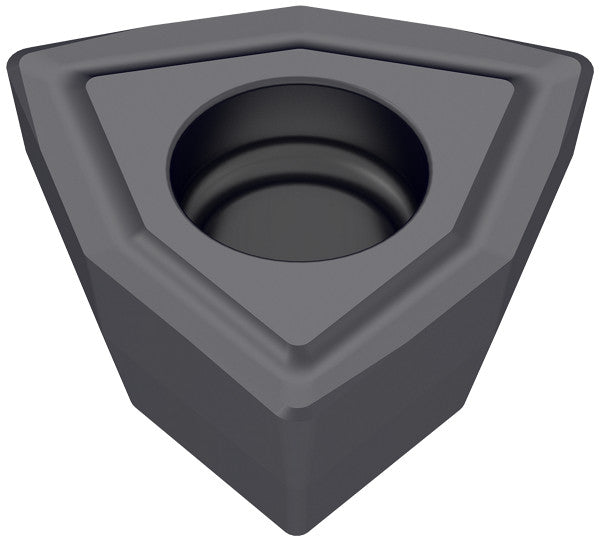

| Name | Ceratizit WOEX 05T304-01 BK7935 CoreLine Carbide Drilling indexable Insert 1082150501 | |
| EDP # | 0758566 | |
| Weight (1 pc.) | 0.1 oz | 3.5 g |
| Inscribed circle diameter / IC | 0.3150" | 8.000 mm |
| designation | 05T304 | |
| insert thickness | T3 | |
| Fixing hole diameter / D1 | 0.1122" | 2.850 mm |
| Insert thickness / S | 0.1496" | 3.800 mm |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.2087" | 5.300 mm |
| Size | 5.0000" | 127.000 mm |
| Coating name / Grade (Ceratizit) / COATN | BK7935 | |
| Product-Carbon-Footprint | D | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
