Description
Ceratizit Article Number: 5054710000
Ceratizit Material Number: 12674127
Ceratizit Komet Number (Unpacked): 1J8000012674127X
Ceratizit Komet Number (Packed): 1J8000012674127X
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

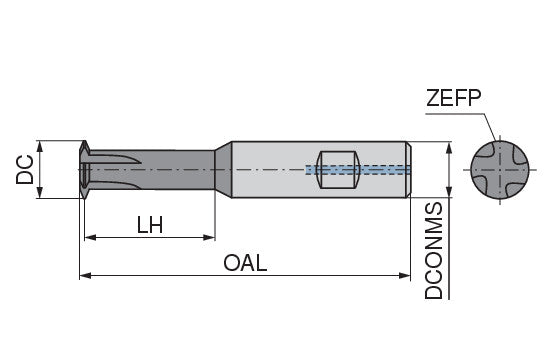

| Properties | ||
|---|---|---|
| Name | Ceratizit MKG M10-M12 XSR <3,0D IK TiCN HB10 MonoThread Thread Milling Cutter 5054710000 | |
| EDP # | 0758635 | |
| Weight (1 pc.) | 2.0 oz | 68.0 g |
| Thread | M10 - M12 | |
| Thread pitch / TP | 0.0591" | 1.500 mm |
| Cutting diameter / DC | 0.3067" | 7.790 mm |
| Head length / LH | 1.0236" | 26.000 mm |
| Overall length / OAL | 2.9921" | 76.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.3937" | 10.000 mm |
| Peripheral effective cutting edge count / ZEFP | 4 | |
| Coating name / Grade (Ceratizit) / COATN | TiCN | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
