Description
Ceratizit Article Number: 5055210000
Ceratizit Material Number: 12698614
Ceratizit Komet Number (Unpacked): 1J9100012698614X
Ceratizit Komet Number (Packed): 1J9100012698614X
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

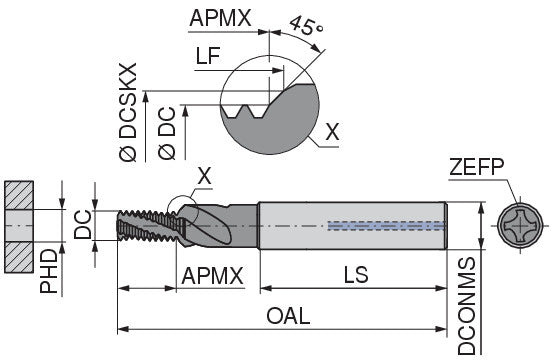

| Properties | ||
|---|---|---|
| Name | Ceratizit SFSE.M10.2D.HA.12.IK AlTiN CoreLine - Shank Thread Milling Cutter With Chamfer Facet - 5055210000 | |
| EDP # | 0758645 | |
| Weight (1 pc.) | 4.0 oz | 99.6 g |
| Product-Carbon-Footprint | B | |

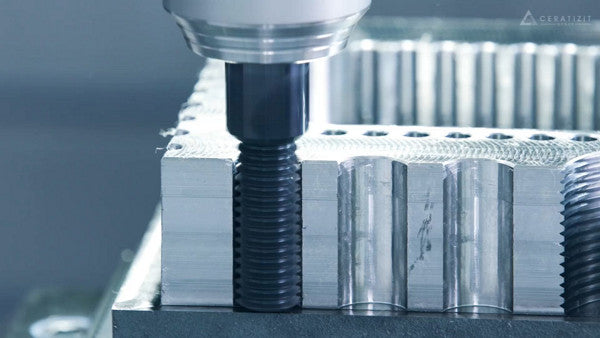

| Machining process - Main Application | Internal thread, right / left | |
| Thread | M10 | |
| Thread pitch / TP | 0.0591" | 1.500 mm |
| Cutting diameter / DC | 0.3067" | 7.790 mm |
| Depth of cut maximum / APMX | 0.8035" | 20.410 mm |
| Shank length / LS | 1.7717" | 45.000 mm |
| Overall length / OAL | 3.1102" | 79.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.4724" | 12.000 mm |
| Countersunk diameter, max / DCSKX | 0.4055" | 10.300 mm |
| Functional length / LF | 0.8386" | 21.300 mm |
| Peripheral effective cutting edge count / ZEFP | 4.0000" | 101.600 mm |
| Premachined hole diameter / PHD | 0.3346" | 8.500 mm |
| Coating name / Grade (Ceratizit) / COATN | AlTiN | |
| Minimum Extension (DIN 6535 HA) | 1.2598" - 1.3386" | 32.000 - 34.000 mm |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
