Description
Ceratizit Article Number: 8395051900
Ceratizit Material Number: 13042980
Ceratizit Komet Number (Unpacked): 51200 00420
Ceratizit Komet Number (Packed): 5120000420
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

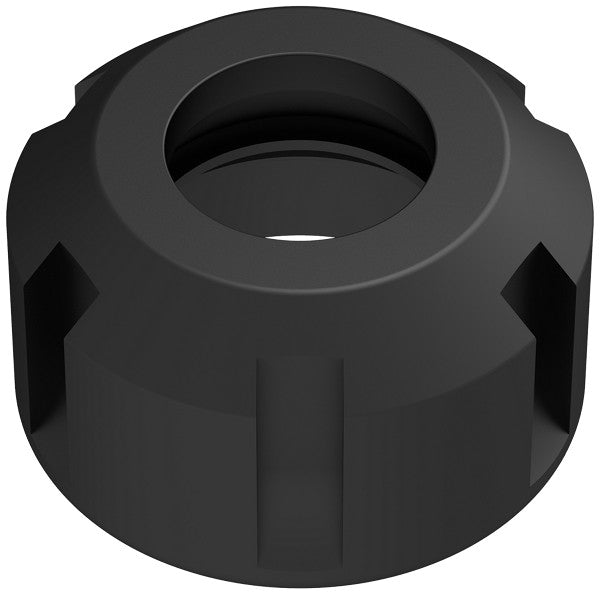

| Name | Ceratizit Clamping Nut Hi-Q/ERC20 Lock 8395051900 | |
| EDP # | 0758779 | |
| Weight (1 pc.) | 3.0 oz | 82.0 g |
| Product-Carbon-Footprint | E | |
| Connection thread nominal size / THSZMS | M25x1,5 | |
| for collet | 428E (ER20) | |
| Lock nut height / HLN | 0.9449" | 24.000 mm |
| Diameter Lock Nut / DLN | 1.3268" | 33.700 mm |
| Drive size / DRVS | 1.1811" | 30.000 mm |
| Functional diameter / DFC | 0.7874" | 20.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
