Description
Ceratizit Article Number: 1587919400
Ceratizit Material Number: 14016052
Ceratizit Komet Number (Unpacked): U11 31943
Ceratizit Komet Number (Packed): U1131943
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB Quatron 1.00x3.25/W8318/0.765/1.575R CoreLine - Indexable Drill - 1587919400 | |
| EDP # | 0758838 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Composites (Black) Aluminum (Green) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 8.0 oz | 225 g |
| Productsystem | Quatron | |

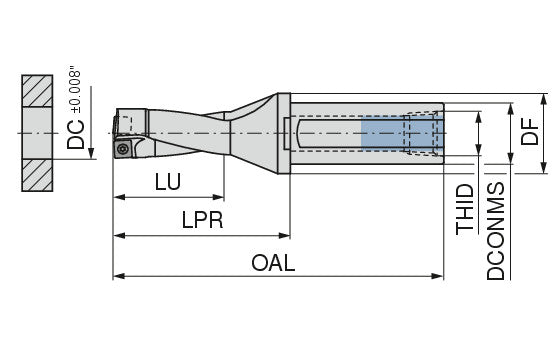

| Cutting diameter / DC | 0.7650" | 19.430 mm |
| Mounting spigot diameter / DCONMS | 1.0000" | 25.400 mm |
| Flange diameter / DF | 1.1800" | 29.970 mm |
| Overall length / OAL | 5.7700" | 146.560 mm |
| Protruding length / LPR | 2.5200" | 64.010 mm |
| Usable length / LU | 1.5750" | 40.000 mm |
| Insert | SOEX 060306 | |
| Thread designation inside / THID | 1/8" NPT | |
| torque moment | 1.01 Nm | |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
