Ceratizit KUB Pentron 32x60/W8028/28,6/58/R - Indexable Drill 1087228603 (0758869)

Ceratizit KUB Pentron 32x60/W8028/28,6/58/R - Indexable Drill 1087228603 (0758869)

Sign in to see pricing.
Shipping calculated at checkout.

Ceratizit Article Number: 1087228603

Ceratizit Material Number: 14027588

Ceratizit Komet Number (Unpacked): U42 22860

Ceratizit Komet Number (Packed): U4222860

Ceratizit is a large tooling company based in Luxembourg (Europe).

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name Ceratizit KUB Pentron 32x60/W8028/28,6/58/R - Indexable Drill 1087228603
EDP # 0758869
Workpiece Material(s) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) HiTemp Alloy (Orange) Composites (Black) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Hard/Tool Steel (Grey) Cast Iron (Red) All Materials (White)
Weight (1 pc.) 20.0 oz 561 g
Product-Carbon-Footprint B
Machining process - Main Application Spot drilling a pointed contour

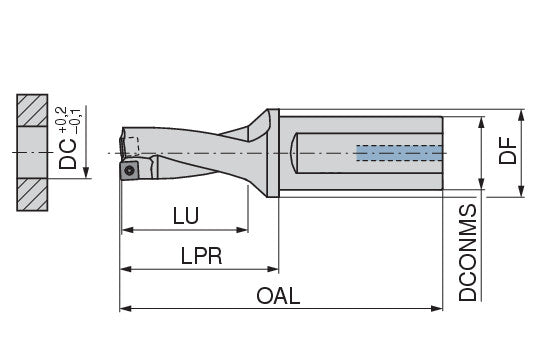

Cutting diameter / DC 1.1260" 28.600 mm
Mounting spigot diameter / DCONMS 1.2598" 32.000 mm
Flange diameter / DF 1.5354" 39.000 mm
Overall length / OAL 5.5512" 141.000 mm
Protruding length / LPR 3.1890" 81.000 mm
Usable length / LU 2.2835" 58.000 mm
Insert SOGX 09T308
torque moment 2.25 Nm


Tool Form:

'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.


Company History:

The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
