Description
Ceratizit Article Number: 1588025400
Ceratizit Material Number: 14037038
Ceratizit Komet Number (Unpacked): U12 12542
Ceratizit Komet Number (Packed): U1212542
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB Quatron 1.00x3.25/W8323/1.000/3.071R KOMET - Indexable Insert Drill 1588025400 | |
| EDP # | 0758895 | |
| Workpiece Material(s) | Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 18.0 oz | 520 g |

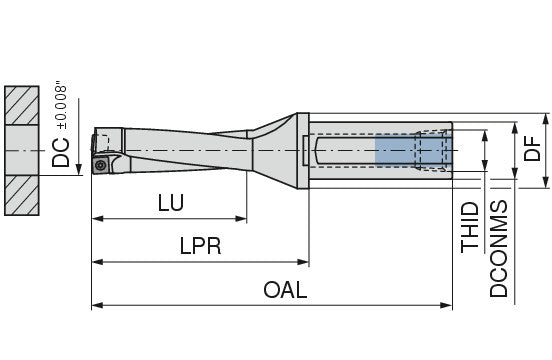

| Cutting diameter / DC | 1.0000" | 25.400 mm |
| Mounting spigot diameter / DCONMS | 1.0000" | 25.400 mm |
| Flange diameter / DF | 1.1800" | 29.972 mm |
| Overall length / OAL | 7.2660" | 184.556 mm |
| Protruding length / LPR | 4.0160" | 102.006 mm |
| Usable length / LU | 3.0710" | 78.003 mm |
| Insert | SOEX 07T308 | |
| Thread designation inside / THID | 1/8" NPT | |
| torque moment | 1.01 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
