Description
Ceratizit Article Number: 1588028601
Ceratizit Material Number: 14037046
Ceratizit Komet Number (Unpacked): U12 22862
Ceratizit Komet Number (Packed): U1222862
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB Quatron 1.25x3.25/W8332/1.125/3.425R KOMET - Indexable Insert Drill 1588028601 | |
| EDP # | 0758903 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) Hard/Tool Steel (Grey) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Aluminum (Green) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 28.0 oz | 780 g |

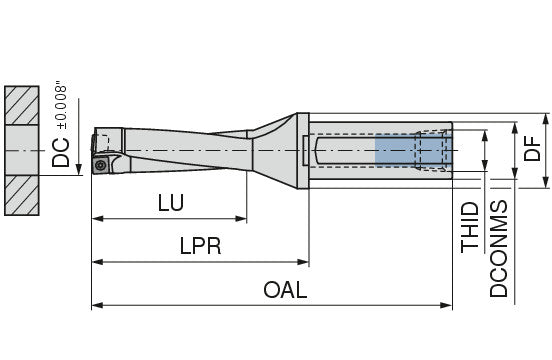

| Cutting diameter / DC | 1.1250" | 28.575 mm |
| Mounting spigot diameter / DCONMS | 1.2500" | 31.750 mm |
| Flange diameter / DF | 1.5400" | 39.116 mm |
| Overall length / OAL | 7.6200" | 193.548 mm |
| Protruding length / LPR | 4.3700" | 110.998 mm |
| Usable length / LU | 3.4250" | 86.995 mm |
| Insert | SOEX 090408 | |
| Thread designation inside / THID | 1/4" NPT | |
| torque moment | 6.25 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
