Description
Ceratizit Article Number: 1589625001
Ceratizit Material Number: 14039331
Ceratizit Komet Number (Unpacked): V57 52502
Ceratizit Komet Number (Packed): V5752502
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB Trigon 1.25x3.25/W2924/0.985/2.000 R KOMET - Indexable Insert Drill 1589625001 | |
| EDP # | 0758942 | |
| Workpiece Material(s) | Aluminum (Green) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Composites (Black) Steel (Blue) Cast Iron (Red) Stainless Steel (Yellow) HiTemp Alloy (Orange) Composites (Black) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 30.0 oz | 858 g |

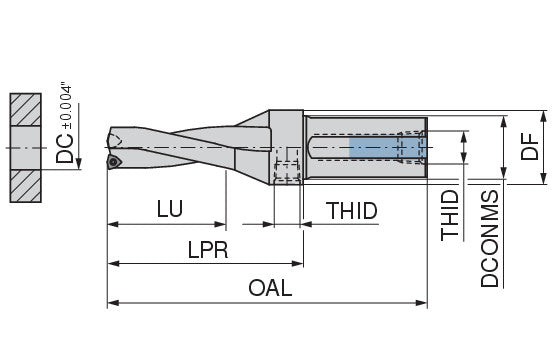

| Cutting diameter / DC | 0.9850" | 25.019 mm |
| Mounting spigot diameter / DCONMS | 1.2500" | 31.750 mm |
| Flange diameter / DF | 1.5752" | 40.010 mm |
| Overall length / OAL | 6.8750" | 174.625 mm |
| Protruding length / LPR | 3.6250" | 92.075 mm |
| Usable length / LU | 2.0000" | 50.800 mm |
| Insert | WOEX 05T304 | |
| Thread designation inside / THID | 1/8" NPT | |
| torque moment | 1.28 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
