Description
Ceratizit Article Number: 1589629401
Ceratizit Material Number: 14039338
Ceratizit Komet Number (Unpacked): V57 52942
Ceratizit Komet Number (Packed): V5752942
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB Trigon 1.25x3.25/W2924/1.156/2.750 R CoreLine - Indexable Drill - 1589629401 | |
| EDP # | 0758948 | |
| Workpiece Material(s) | Stainless Steel (Yellow) Cast Iron (Red) Steel (Blue) Cast Iron (Red) HiTemp Alloy (Orange) Composites (Black) Aluminum (Green) Hard/Tool Steel (Grey) All Materials (White) | |
| Weight (1 pc.) | 19.0 oz | 533 g |
| Productsystem | Trigon | |
| Machining process - Main Application | Drilling with a transverse hole | |

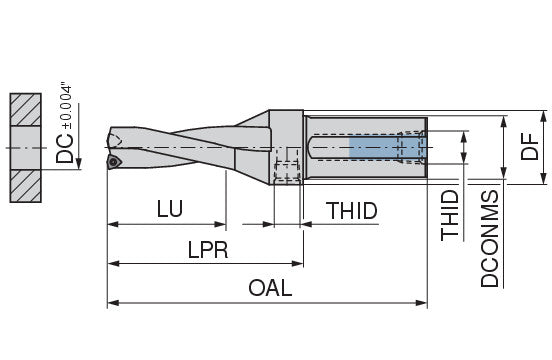

| Cutting diameter / DC | 1.1560" | 29.360 mm |
| Mounting spigot diameter / DCONMS | 1.2500" | 31.750 mm |
| Flange diameter / DF | 1.5752" | 40.010 mm |
| Overall length / OAL | 8.2500" | 209.550 mm |
| Protruding length / LPR | 5.0000" | 127.000 mm |
| Usable length / LU | 3.2500" | 82.550 mm |
| Insert | WOEX 05T304 | |
| Thread designation inside / THID | 1/8" NPT | |
| torque moment | 1.28 Nm | |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
