Description
Ceratizit Article Number: 8432780500
Ceratizit Material Number: 14039660
Ceratizit Komet Number (Unpacked): 545.40.005
Ceratizit Komet Number (Packed): 54540005
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

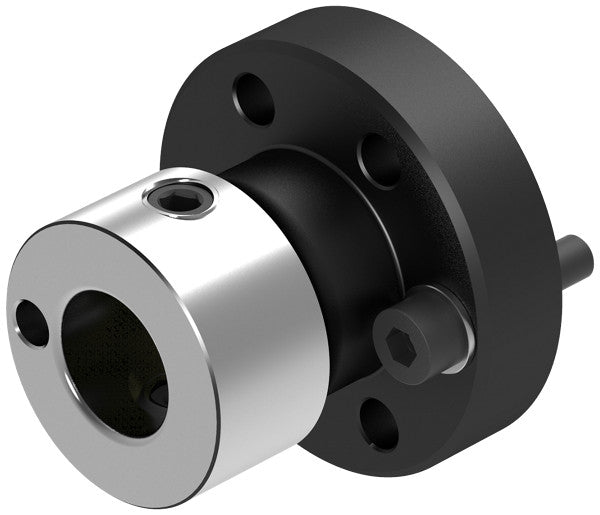

| Name | Ceratizit Bushing ABS80 / DAH115 HyPower - Adapter - ABSDAH 8432780500 | |
| EDP # | 0758950 | |
| Weight (1 pc.) | 117.0 oz | 3311 g |
| Machine interface size | DAH 115 | |
| nominal size / SZID | ABS 80 | |
| Protruding length / LPR | 4.3307" | 110.000 mm |
| Mounting spigot diameter / DCONMS | 3.9173" | 99.500 mm |
| Functional length / LF | 3.3071" | 84.000 mm |
| Body length / LB | 1.7717" | 45.000 mm |
| Clamping diameter (DCONWS) / DCONWS | 1.8110" | 46.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
