Description
Ceratizit Article Number: 1588061998
Ceratizit Material Number: 14043880
Ceratizit Komet Number (Unpacked): U12 46190
Ceratizit Komet Number (Packed): U1246190
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB Quatron ABS80/W8332/61,9/186/R KOMET - Indexable Insert Drill 1588061998 | |
| EDP # | 0758962 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) Hard/Tool Steel (Grey) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Aluminum (Green) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 142.0 oz | 4021 g |

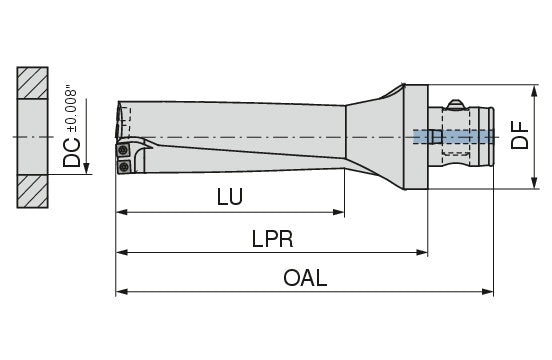

| Cutting diameter / DC | 2.4370" | 61.900 mm |
| Mounting spigot diameter / DCONMS | 1.8110" | 46.000 mm |
| Flange diameter / DF | 3.1496" | 80.000 mm |
| Overall length / OAL | 11.1810" | 283.997 mm |
| Protruding length / LPR | 9.4880" | 240.995 mm |
| Usable length / LU | 7.3230" | 186.004 mm |
| Insert | SOEX 090408 | |
| torque moment | 2.25 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
