Description
Ceratizit Article Number: 1589431801
Ceratizit Material Number: 14062987
Ceratizit Komet Number (Unpacked): V57 73182
Ceratizit Komet Number (Packed): V5773182
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

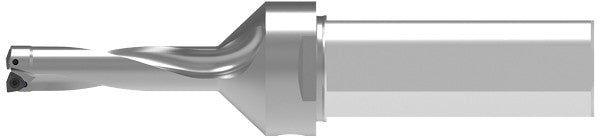

| Name | Ceratizit KUB Trigon 1.25x3.25/W2924/1.250/5.000 R - Indexable Insert Drill 1589431801 | |
| EDP # | 0758983 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) Hard/Tool Steel (Grey) Stainless Steel (Yellow) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Aluminum (Green) Composites (Black) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 41.0 oz | 1172 g |
| Cutting diameter / DC | 1.2500" | 31.750 mm |
| Mounting spigot diameter / DCONMS | 1.2500" | 31.750 mm |
| Flange diameter / DF | 1.5752" | 40.010 mm |
| Overall length / OAL | 9.8410" | 249.961 mm |
| Protruding length / LPR | 6.5910" | 167.411 mm |
| Usable length / LU | 5.0000" | 127.000 mm |
| Insert | WOEX 05T304 | |
| Thread designation inside / THID | 1/8" NPT | |
| torque moment | 1.28 Nm | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
