Description
Ceratizit Article Number: 1589649202
Ceratizit Material Number: 14152582
Ceratizit Komet Number (Unpacked): V57 34922
Ceratizit Komet Number (Packed): V5734922
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB Drill 1.50x5.00/W2942/1.937/5.000 R CoreLine - Indexable - Trigon 1589649202 | |
| EDP # | 0759107 | |
| Workpiece Material(s) | Cast Iron (Red) Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) Composites (Black) Aluminum (Green) Hard/Tool Steel (Grey) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 93.0 oz | 2630 g |

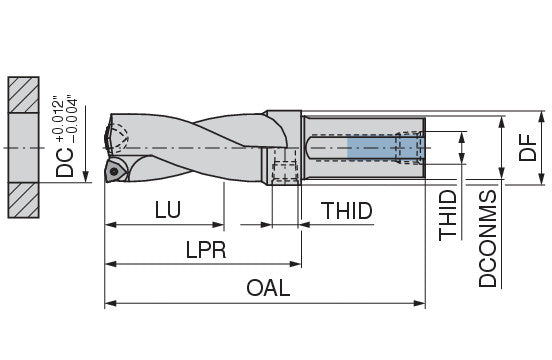

| Cutting diameter / DC | 1.9370" | 49.200 mm |
| Mounting spigot diameter / DCONMS | 1.5000" | 38.100 mm |
| Flange diameter / DF | 1.9689" | 50.010 mm |
| Overall length / OAL | 11.8900" | 302.010 mm |
| Protruding length / LPR | 6.8900" | 175.010 mm |
| Usable length / LU | 5.0000" | 127.000 mm |
| Insert | WOEX 080404 | |
| Thread designation inside / THID | 1/4" NPT | |
| torque moment | 4.3 Nm | |
| Productsystem | Trigon | |
| Machining process - Main Application | Angled hole entrance | |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
