Description
Ceratizit Article Number: 1589650802
Ceratizit Material Number: 14152583
Ceratizit Komet Number (Unpacked): V57 35082
Ceratizit Komet Number (Packed): V5735082
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB Drill 1.50x5.00/W2942/2.000/5.000 R KOMET Trigon - Indexable Insert Drill 1589650802 | |
| EDP # | 0759108 | |
| Weight (1 pc.) | 94.0 oz | 2660 g |

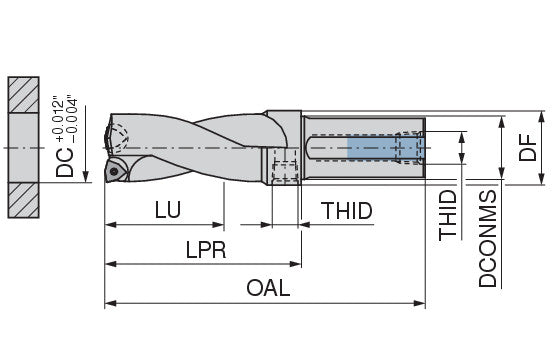

| Cutting diameter / DC | 2.0000" | 50.800 mm |
| Mounting spigot diameter / DCONMS | 1.5000" | 38.100 mm |
| Flange diameter / DF | 1.9689" | 50.010 mm |
| Overall length / OAL | 11.8900" | 302.006 mm |
| Protruding length / LPR | 6.8900" | 175.006 mm |
| Usable length / LU | 5.0000" | 127.000 mm |
| Insert | WOEX 080404 | |
| Thread designation inside / THID | 1/4" NPT | |
| torque moment | 4.3 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
