Description
Ceratizit Article Number: 1589682604
Ceratizit Material Number: 14152592
Ceratizit Komet Number (Unpacked): V57 38262
Ceratizit Komet Number (Packed): V5738262
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

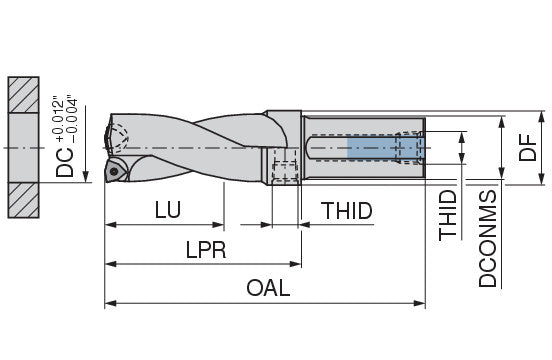

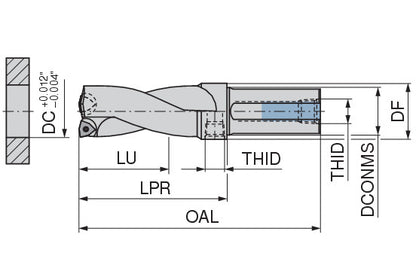

| Properties | ||
|---|---|---|
| Name | Ceratizit KUB Drill 2.00x5.00/W2958/3.250/6.000 R CoreLine - Indexable - Trigon 1589682604 | |
| EDP # | 0759115 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 250.0 oz | 7100 g |
| Cutting diameter / DC | 3.2500" | 82.550 mm |
| Mounting spigot diameter / DCONMS | 2.0000" | 50.800 mm |
| Flange diameter / DF | 3.1299" | 79.500 mm |
| Overall length / OAL | 13.2680" | 337.010 mm |
| Protruding length / LPR | 8.2670" | 209.980 mm |
| Usable length / LU | 6.0000" | 152.400 mm |
| Insert | WOEX 120608 | |
| Thread designation inside / THID | 1/4" NPT | |
| torque moment | 6.25 Nm | |
| Productsystem | Trigon | |
| Machining process - Main Application | Angled hole entrance | |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
