Description
Ceratizit Article Number: 1589252496
Ceratizit Material Number: 14154397
Ceratizit Komet Number (Unpacked): V13 35240
Ceratizit Komet Number (Packed): V1335240
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

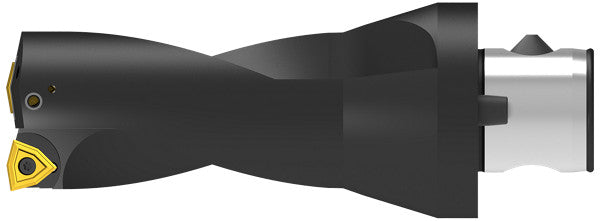

| Name | Ceratizit KUB Drill ABS63/W2942/2.062/4.124 R KOMET Trigon - Indexable Insert Drill 1589252496 | |
| EDP # | 0759133 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) Hard/Tool Steel (Grey) HiTemp Alloy (Orange) Composites (Black) Cast Iron (Red) Steel (Blue) Stainless Steel (Yellow) Hard/Tool Steel (Grey) Aluminum (Green) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 74.0 oz | 2100 g |

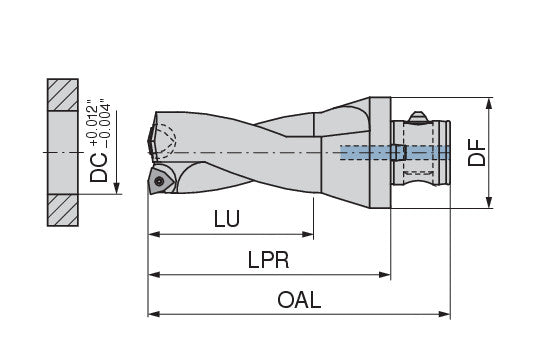

| Cutting diameter / DC | 2.0620" | 52.375 mm |
| Mounting spigot diameter / DCONMS | 1.3386" | 34.000 mm |
| Flange diameter / DF | 2.4803" | 63.000 mm |
| Overall length / OAL | 7.7860" | 197.764 mm |
| Protruding length / LPR | 6.2900" | 159.766 mm |
| Usable length / LU | 4.1240" | 104.750 mm |
| Insert | WOEX 080404 | |
| torque moment | 4.3 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
