Description
Ceratizit Article Number: 1589414309
Ceratizit Material Number: 14154737
Ceratizit Komet Number (Unpacked): V57 61432
Ceratizit Komet Number (Packed): V5761432
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB Trigon 0.75x2.25/W2910/0.562/2.248 R KOMET - Indexable Insert Drill 1589414309 | |
| EDP # | 0759138 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) Hard/Tool Steel (Grey) HiTemp Alloy (Orange) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Hard/Tool Steel (Grey) Aluminum (Green) Composites (Black) HiTemp Alloy (Orange) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 8.0 oz | 220 g |

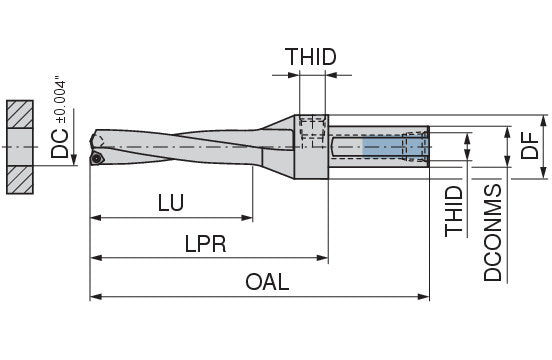

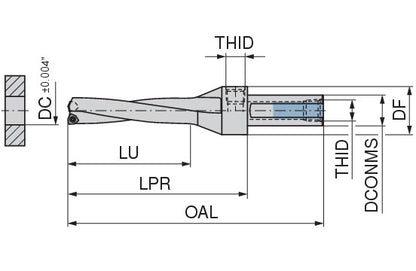

| Cutting diameter / DC | 0.5620" | 14.275 mm |
| Mounting spigot diameter / DCONMS | 0.7500" | 19.050 mm |
| Flange diameter / DF | 1.1299" | 28.700 mm |
| Overall length / OAL | 5.8750" | 149.225 mm |
| Protruding length / LPR | 3.6250" | 92.075 mm |
| Usable length / LU | 2.2480" | 57.099 mm |
| Insert | WOEX 030204 | |
| Thread designation inside / THID | 1/8" NPT | |
| torque moment | 0.62 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
